Ferrite with cilidrical hole
Ferrite holding magnets with steel base and cylindrical hole can be attached to a counterpart of your choice using a screw.
Total products
20
Holding POT HM 16 x 5 x 3,3 x 4,5 - Ferrite Magnet with cilidrical hole
0.50kg
Code
040000N03M016000330045H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 16, Internal Hole 5/3.3, Height 4.5 Holding Force Max. = 0.5 Kg. Axial Magnetization [Along Height]
Holding POT HM 20 x 7 x 3,3 x 6 - Ferrite Magnet with cilidrical hole
1.60kg
Code
040000N03M020000330060H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 20, Internal Hole 7/3.3, Height 6 Holding Force Max. = 1.6 Kg. Axial Magnetization [Along Height]

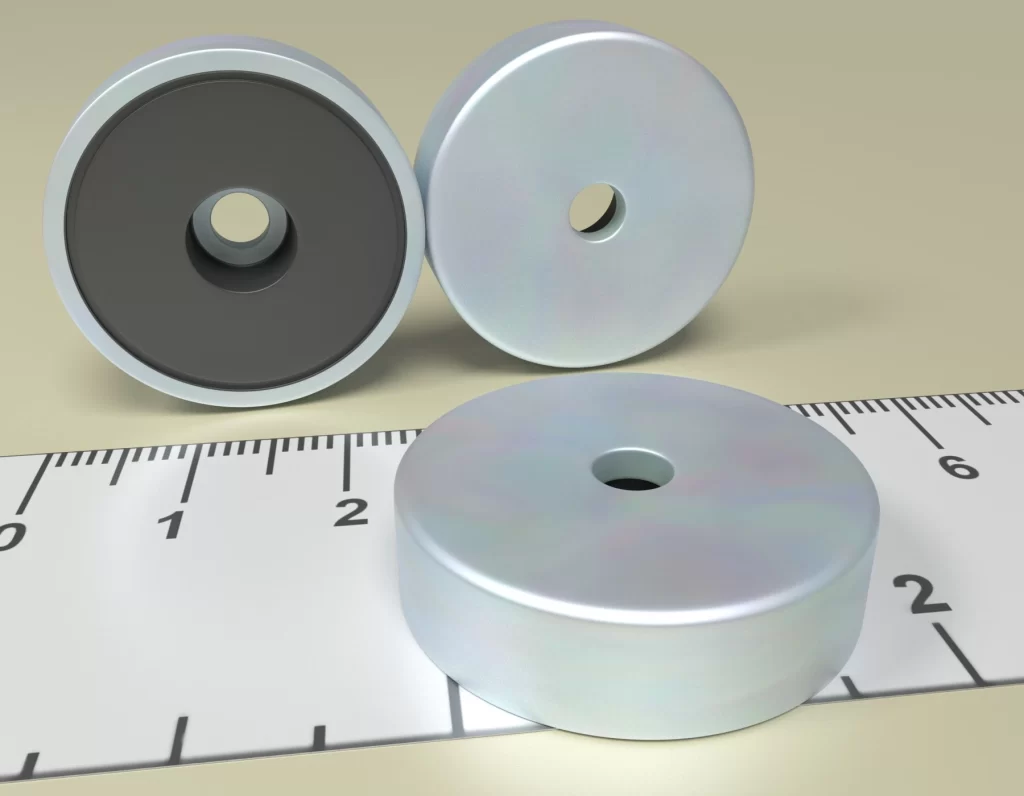

Holding POT HM 25 x 7 x 4 x 7 - Ferrite Magnet with cilidrical hole
3.10kg
Code
040000N03M025000400070H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 25, Internal Hole 7/4, Height 7 Holding Force Max. = 3.1 Kg. Axial Magnetization [Along Height]

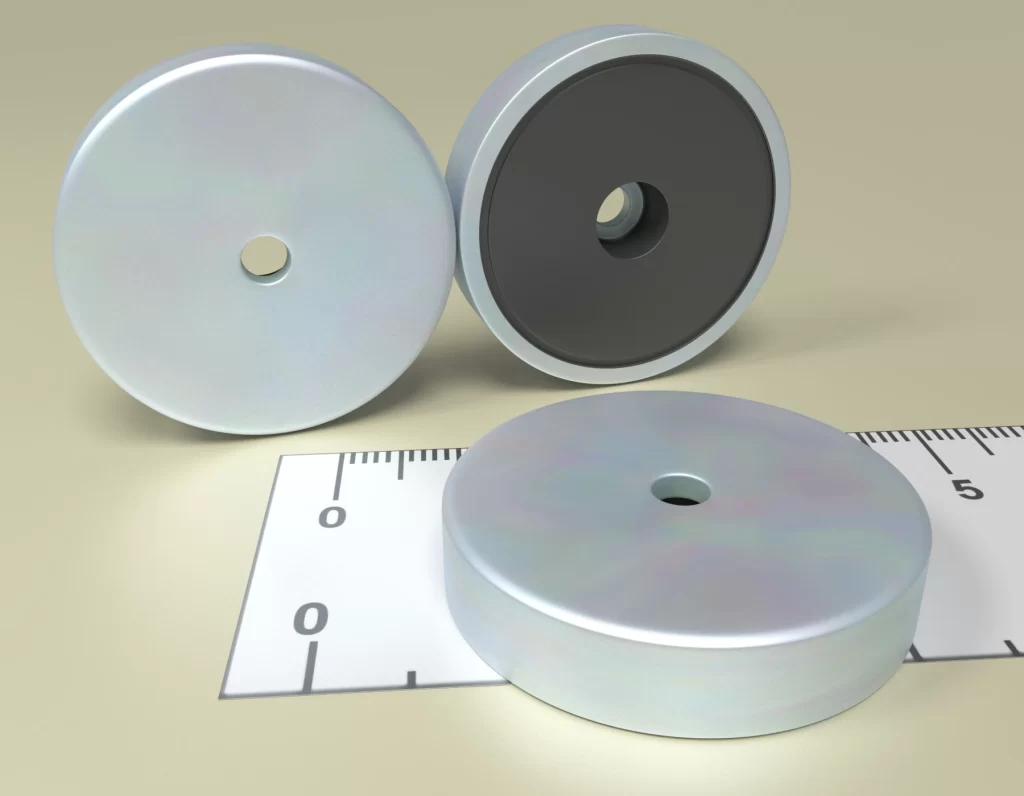

Holding POT HM 32 x 6 x 4 x 7 - Ferrite Magnet with cilidrical hole
8.00kg
Code
040000N03M032000400070H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 32, Internal Hole 6/4, Height 7 Holding Force Max. = 8 Kg. Axial Magnetization [Along Height]

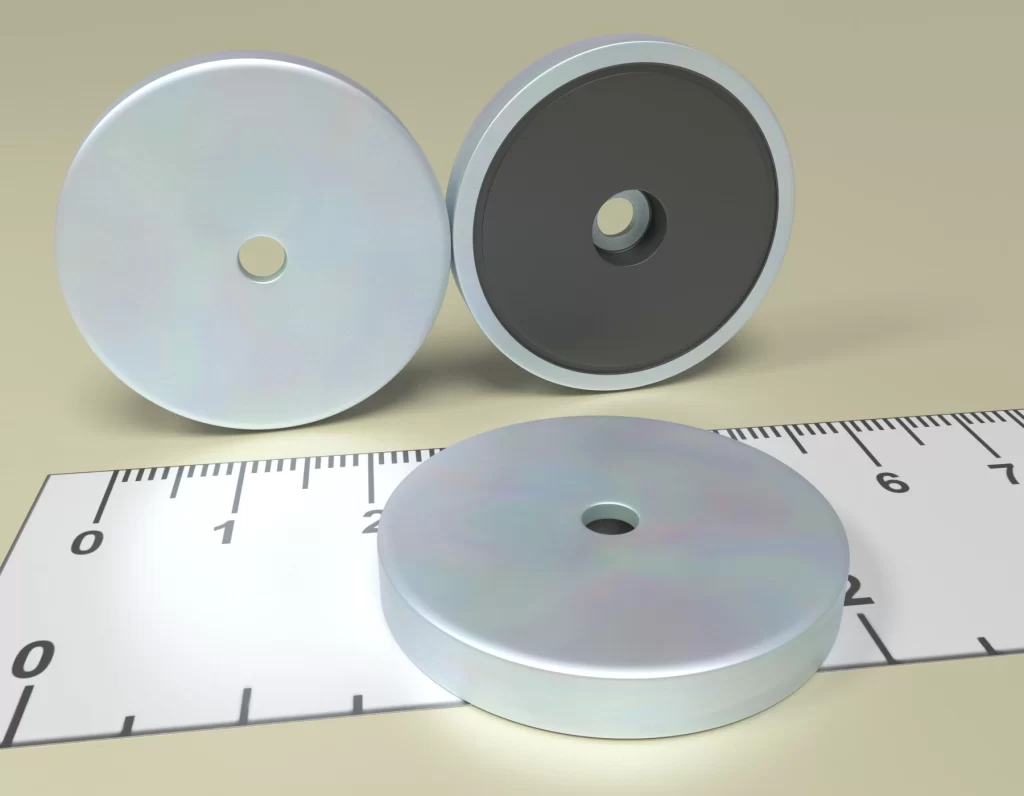

Holding POT HM 30 x 6,3 x 3,3 x 4,6 - Ferrite Magnet with cilidrical hole
8.50kg
Code
040000N03M030000330046H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 30, Internal Hole 6.3/3.3, Height 4.6 Holding Force Max. = 8.5 Kg. Axial Magnetization [Along Height]
Holding POT HM 40 x 17 x 5,5 x 8 - Ferrite Magnet with cilidrical hole
10.00kg
Code
040000N03M040000550080H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 40, Internal Hole 17/5.5, Height 8 Holding Force Max. = 10 Kg. Axial Magnetization [Along Height]
Holding POT HM 36 x 9 x 4 x 7,7 - Ferrite Magnet with cilidrical hole
10.50kg
Code
040000N03M036000400077H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 36, Internal Hole 9/4, Height 7.7 Holding Force Max. = 10.5 Kg. Axial Magnetization [Along Height]
Holding POT HM 47 x 19 x 5,5 x 9 - Ferrite Magnet with cilidrical hole
11.00kg
Code
040000N03M047000550090H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 47, Internal Hole 19/5.5, Height 9 Holding Force Max. = 11 Kg. Axial Magnetization [Along Height]
Out of stock

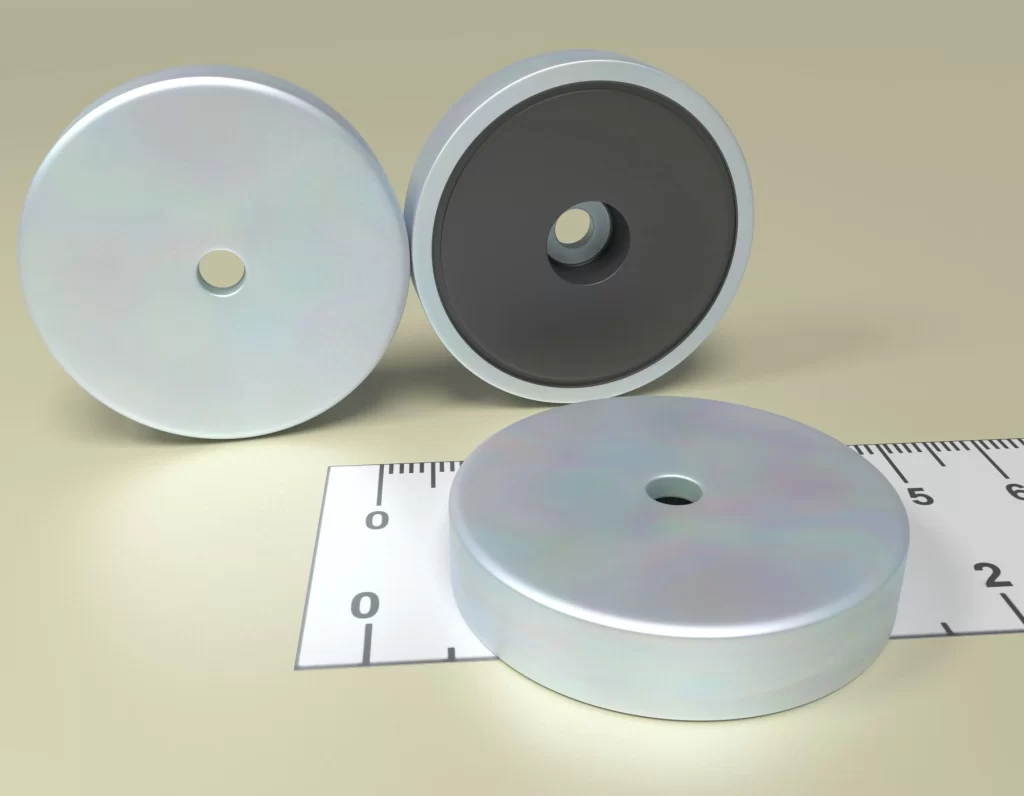

Holding POT HM 36,2 x 9,3 x 4,8 x 7,2 - Ferrite Magnet with cilidrical hole
12.50kg
Code
040000N03M036200480072H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 36.2, Internal Hole 9.3/4.8, Height 7.2 Holding Force Max. = 12.5 Kg. Axial Magnetization [Along Height]
Holding POT HM 50 x 21 x 5,5 x 10 - Ferrite Magnet with cilidrical hole
15.00kg
Code
040000N03M050000550100H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 50, Internal Hole 21/5.5, Height 10 Holding Force Max. = 15 Kg. Axial Magnetization [Along Height]
Out of stock

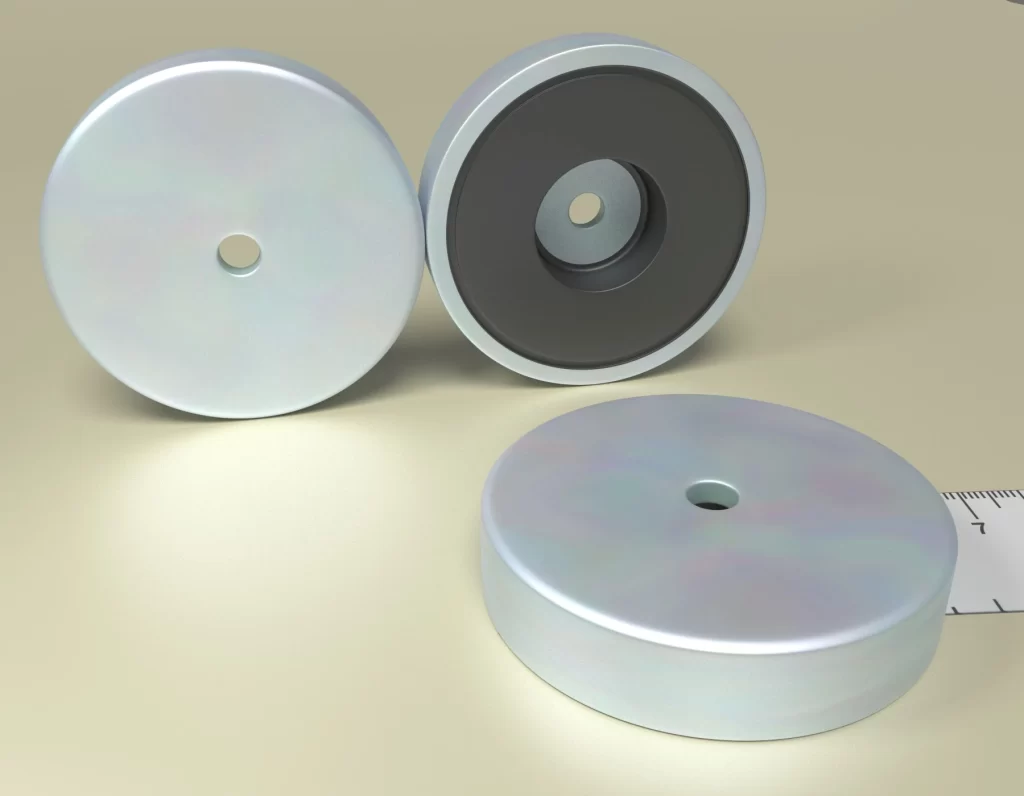

Holding POT HM 63 x 23 x 6,5 x 14 - Ferrite Magnet with cilidrical hole
22.00kg
Code
040000N03M063000650140H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 63, Internal Hole 23/6.5, Height 14 Holding Force Max. = 22 Kg. Axial Magnetization [Along Height]

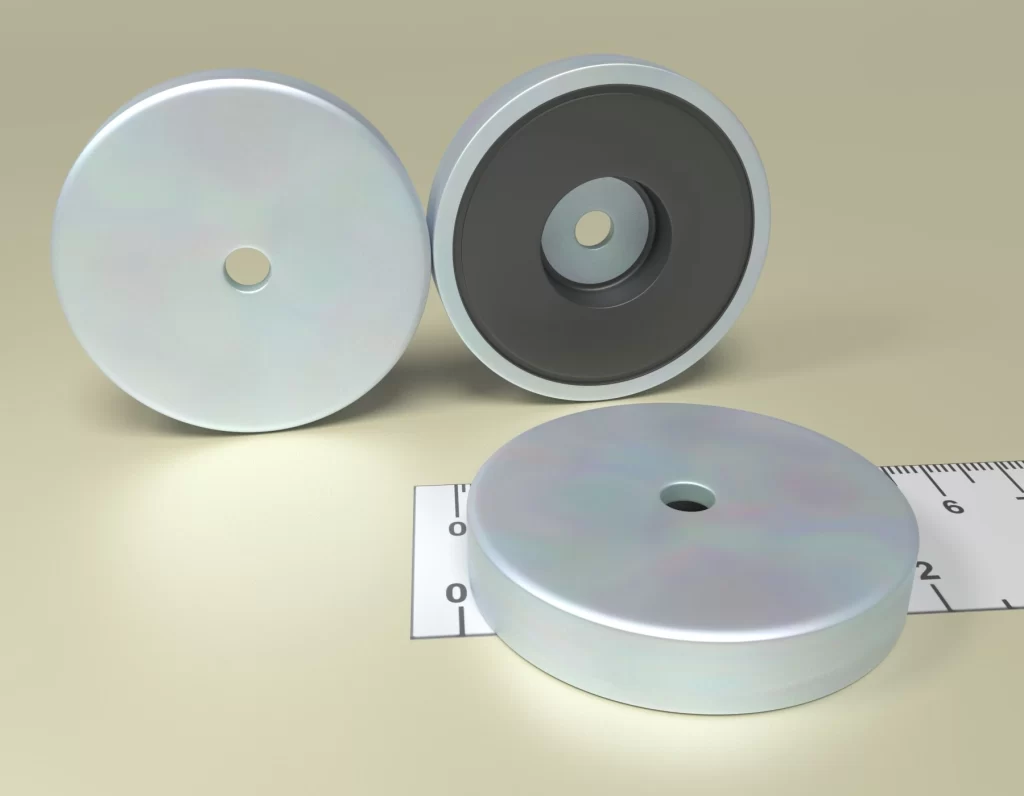

Holding POT HM 52 x 22 x 5 x 8 - Ferrite Magnet with cilidrical hole
23.00kg
Code
040000N03M052000500080H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 52, Internal Hole 22/5, Height 8 Holding Force Max. = 23 Kg. Axial Magnetization [Along Height]
Out of stock
These ferrite holding magnets have a cylindrical hole inside and can be screwed onto objects or walls, they consist of a ferrite magnet inserted into a steel base. The steel base allows the magnet’s force to be concentrated and protected from impacts.
