Neodymium with threaded pin
Neodymium holding magnets with steel base, thanks to the threaded stem they can be quickly screwed into existing threads.
Total products
8

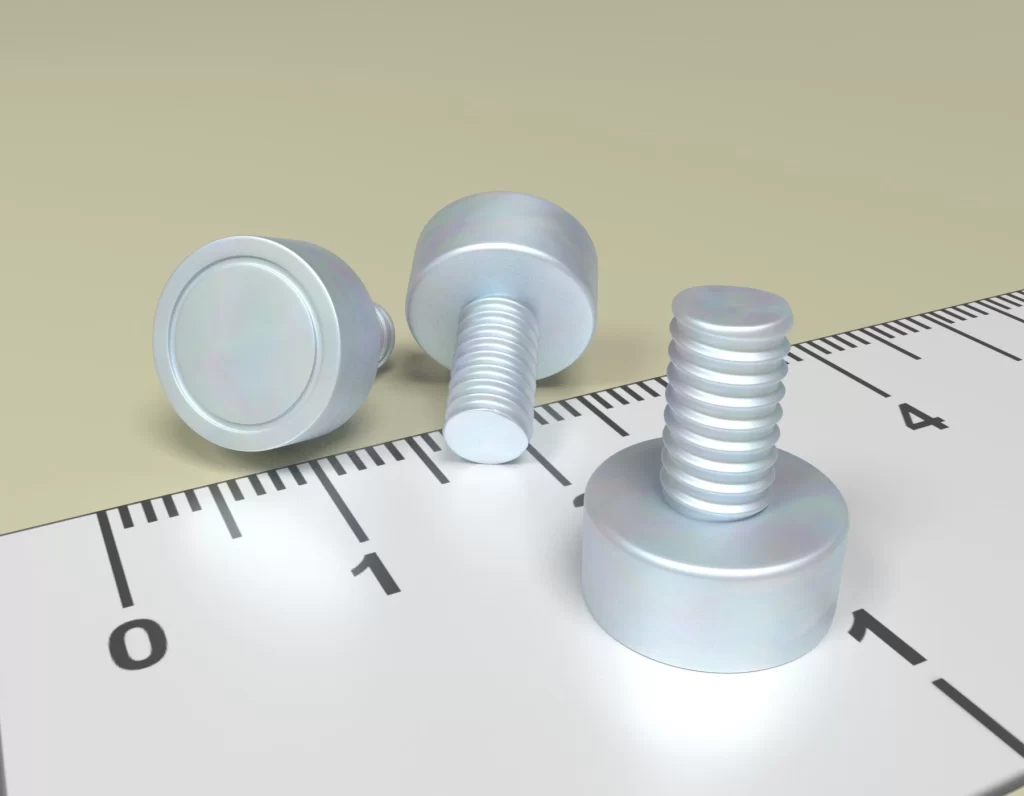

Holding POT HM 10x 4.5 Neodym magnet threaded pin M4 Height of Pin 8
3kg
Code
013800P03M010000800045H
Neodymium Holding Pot Magnet with threaded pin M4 and dimension Outer diameter 10, Height 4.5 Holding Force Max. = 3 Kg. Zinc coated - Axial Magnetization [Along Height]

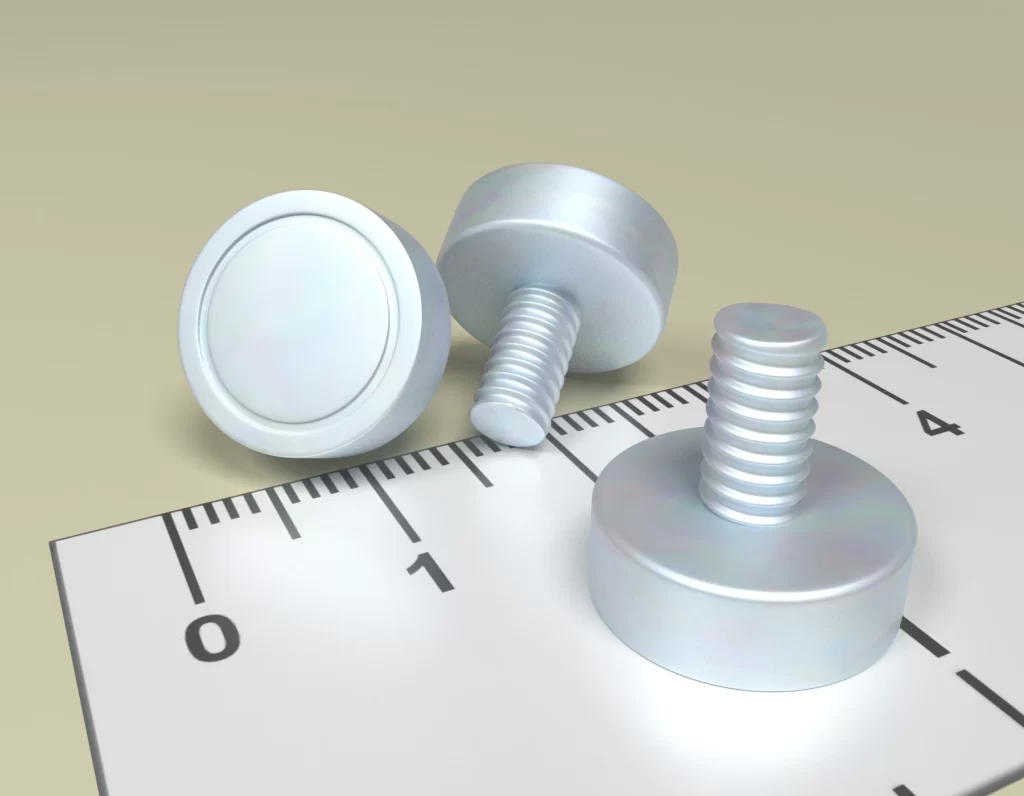

Holding POT HM 13x 4.5 Neodym magnet threaded pin M5 Height of Pin 8
6kg
Code
013800P03M013000800045H
Neodymium Holding Pot Magnet with threaded pin M5 and dimension Outer diameter 13, Height 4.5 Holding Force Max. = 6 Kg. Zinc coated - Axial Magnetization [Along Height]

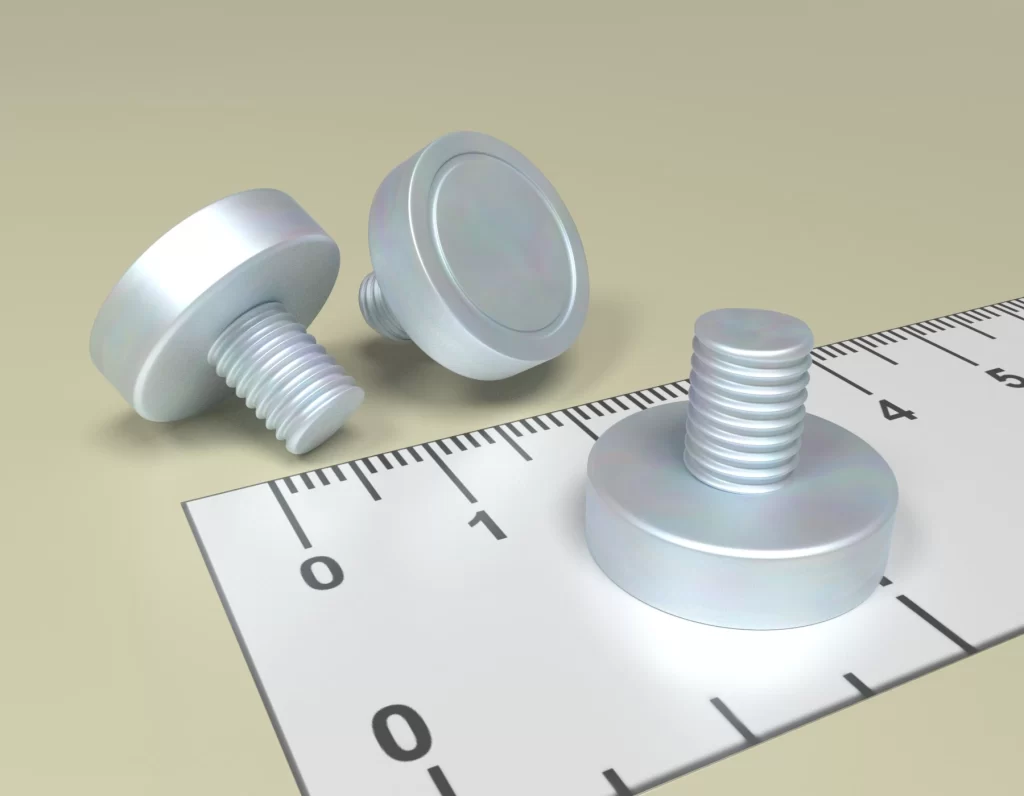

Holding POT HM 16x 4.5 Neodym magnet threaded pin M5 Height of Pin 8
10kg
Code
013800P03M116000800045H
Neodymium Holding Pot Magnet with threaded pin M5 and dimension Outer diameter 16, Height 4.5 Holding Force Max. = 10 Kg. Zinc coated - Axial Magnetization [Along Height]
Holding POT HM 16x 4.5 Neodym magnet threaded pin M6 Height of Pin 8
10kg
Code
013800P03M016000800045H
Neodymium Holding Pot Magnet with threaded pin M6 and dimension Outer diameter 16, Height 4.5 Holding Force Max. = 10 Kg. Zinc coated - Axial Magnetization [Along Height]

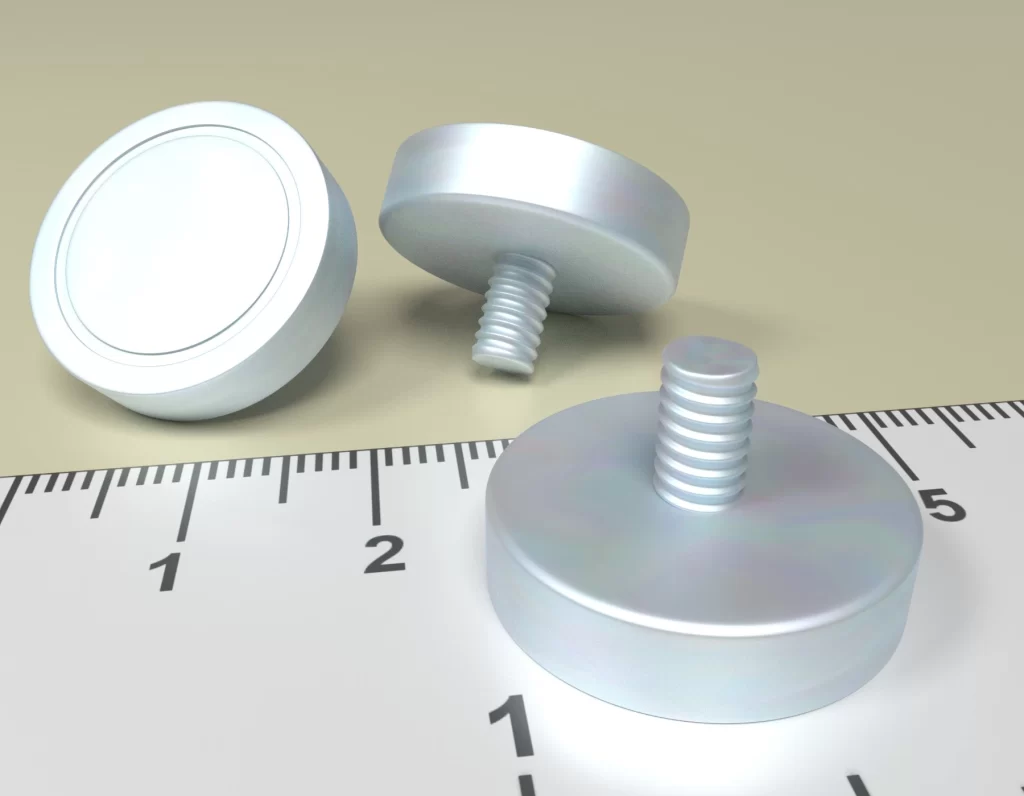

Holding POT HM 20x 5 Neodym magnet threaded pin M5 Height of Pin 7
16kg
Code
013800P03M020000700050H
Neodymium Holding Pot Magnet with threaded pin M5 and dimension Outer diameter 20, Height 5 Holding Force Max. = 16 Kg. Zinc coated - Axial Magnetization [Along Height]

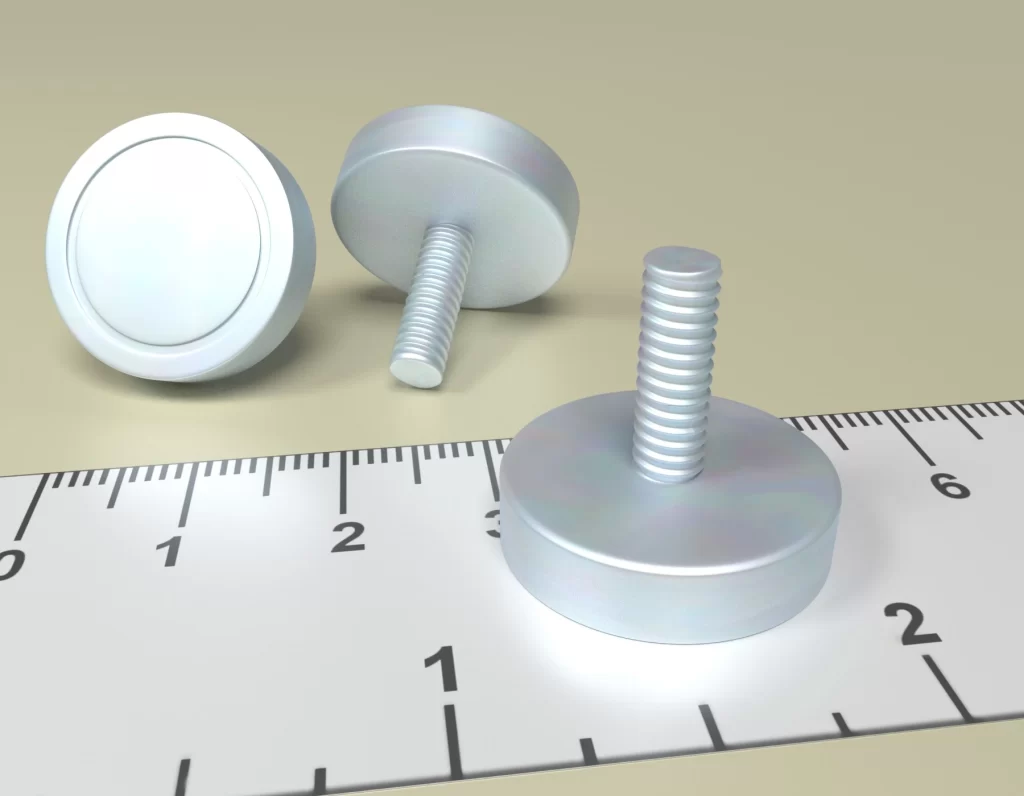

Holding POT HM 20x 5 Neodym magnet threaded pin M5 Height of Pin 13
16kg
Code
013800P03M020001300050H
Neodymium Holding Pot Magnet with threaded pin M5 and dimension Outer diameter 20, Height 5 Holding Force Max. = 16 Kg. Zinc coated - Axial Magnetization [Along Height]
Holding POT HM 25x 7 Neodym magnet threaded pin M6 Height of Pin 10
27kg
Code
013800P03M025001000070H
Neodymium Holding Pot Magnet with threaded pin M6 and dimension Outer diameter 25, Height 7 Holding Force Max. = 27 Kg. Zinc coated - Axial Magnetization [Along Height]
Holding POT HM 32x 7 Neodym magnet threaded pin M6 Height of Pin 10
45kg
Code
013800P03M032001000070H
Neodymium Holding Pot Magnet with threaded pin M6 and dimension Outer diameter 32, Height 7 Holding Force Max. = 45 Kg. Zinc coated - Axial Magnetization [Along Height]
These Neodymium holding magnets have a threaded stem and can be screwed directly onto other objects. They consist of a Neodymium magnet inserted into a steel base. The steel base allows the force of the magnet to be concentrated and protects it from impacts.
