FX-C lifting magnets have a round multi-pole anchorage surface, designed for lifting rings, bushings, bearing housings, flange plates and similar parts.The load specification is valid for the contact of the entire surface with pieces that overlap from the inside to the outside (see the “Dimensions” table). Parts with a smaller contact surface can have a capacity of 3.5 kg max. per cm² of surface.
250kg

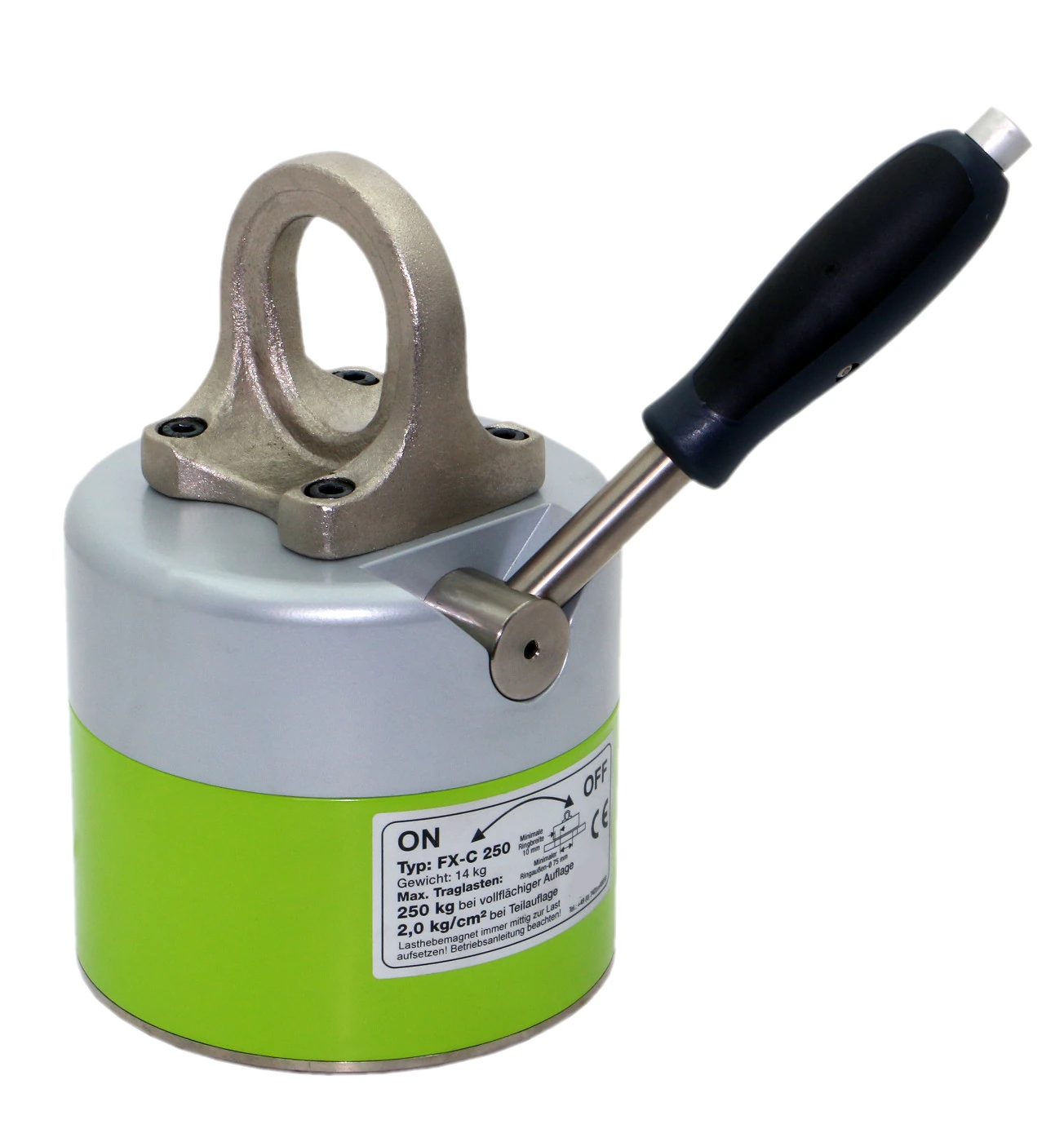

Circular Permanent Magnetic Lifter FX-C250
Code 15FXV0O08N160016001450N
FX-C250; Special circular permanent magnetic lifter for rings and circular elements. Up to 250 kg with 12 mm thickness.
Material
NdFeB
Magnetization direction
€1.498,00
EXCLUDING VAT and
and shipping costs
Safe delivery
Invoice for companies
Verified eCommerce
Personalized support
Large
160 mm
Lenght
152 mm
Heigth
65 mm
Heigth Body H1
145 mm
Lever lenght R
153 mm
Max Load from Thickness material mm
12 mm
Eyelet dimensions
210
Weight
15 kg
