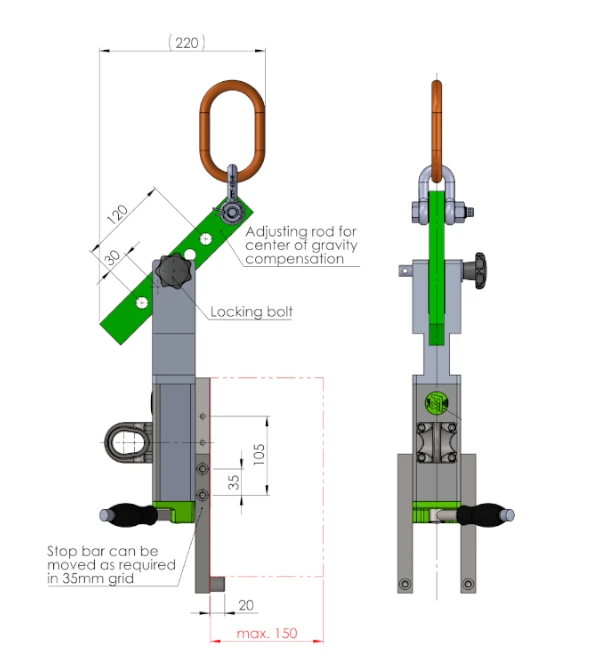

The FX-HV 150 horizontal/vertical system with its versatile application possibilities covers a wide range of uses. The total height and the center of gravity of the lift can be adjusted via the positioning holes. For horizontal transport the system has a lifting eye on the rear. The metal construction is fully stabilized and painted; the FX VV200 lift provides maximum safety during handling.
150kg

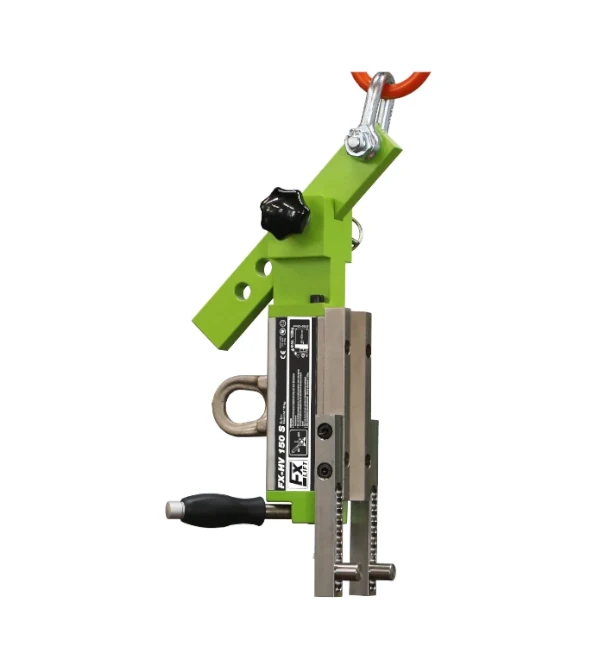

FX-HV150 Vertical-Horizontal Magnetic System
Code 15FXHVO08N680010402200N
FX HV 150 horizontal/vertical magnetic handling system. For loads up to 150 kg
Material
NdFeB
Magnetization direction
on base if active
€ 1.398,00
€1.198,00
EXCLUDING VAT and
and shipping costs
Safe delivery
Invoice for companies
Verified eCommerce
Personalized support
Base
220 mm
Lenght
680 mm
Large
104 mm
Weight
18 kg
Maximum Load without STOP
30 kg
Maximum Load with STOP
150 kg
Maximum Load Dimension Flat Material
1000 x 420 mm
Maximum Load Dimension Discs
150 - 420 mm
Related products

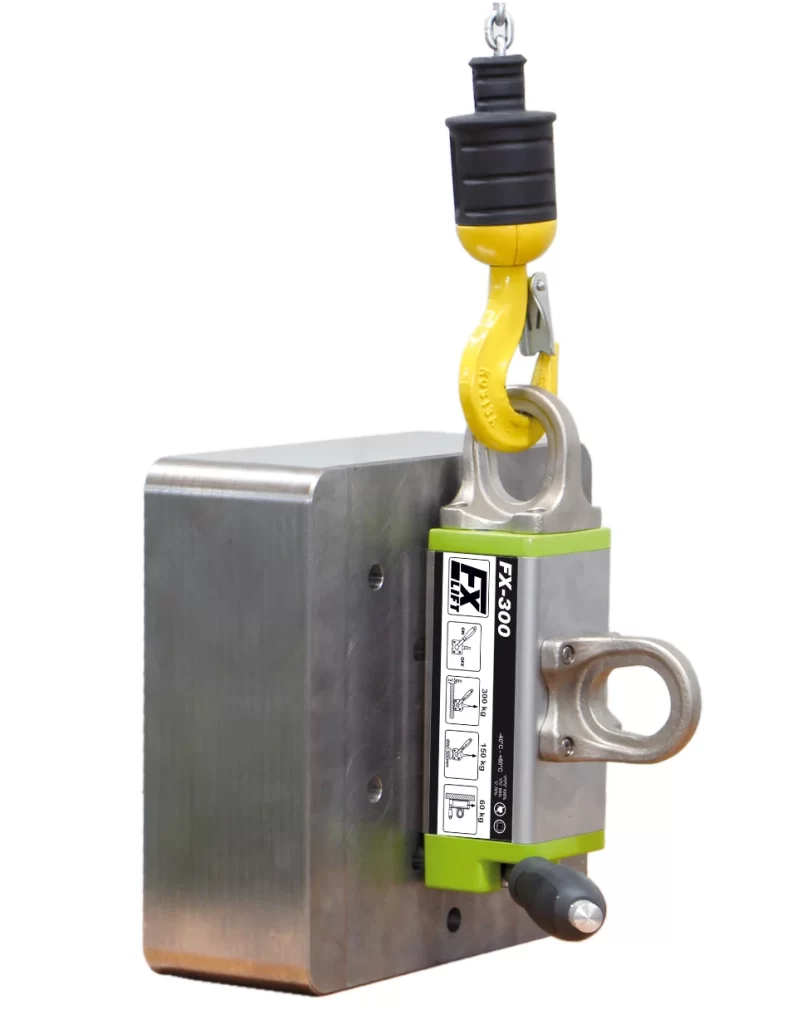

FX 300 doppio occhiello
60kg
Code
8 1101 0002
FX 300 con doppio occhiello di sollevamento.
€ 654,00
EXCLUDING VAT and
and shipping costs

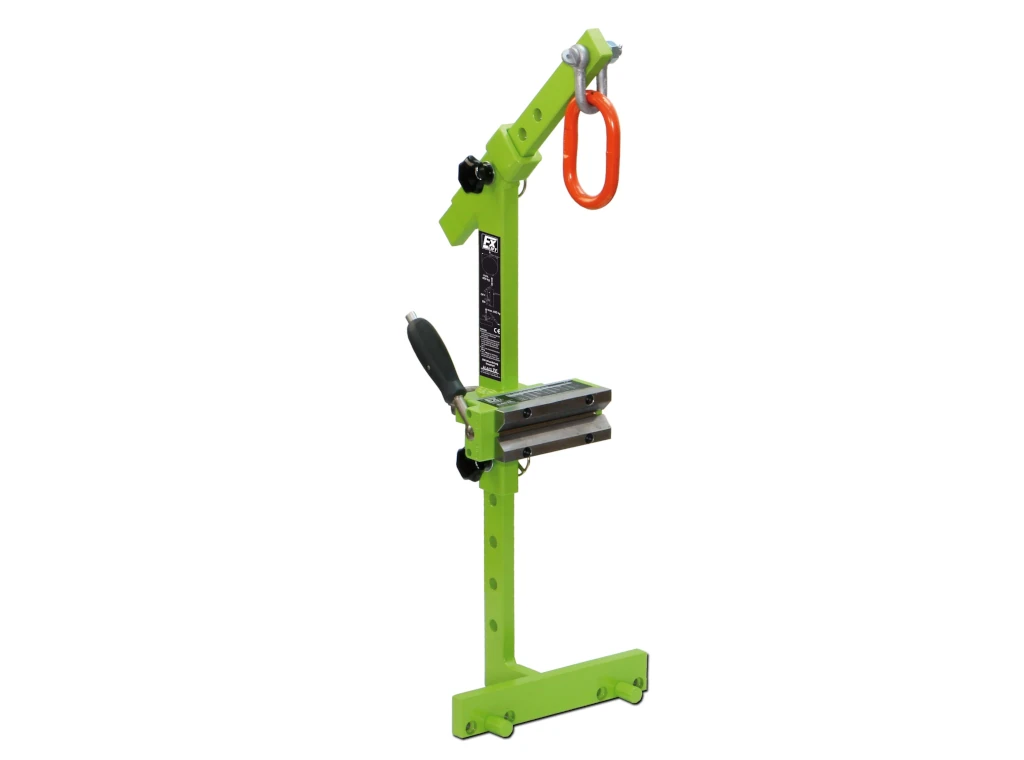

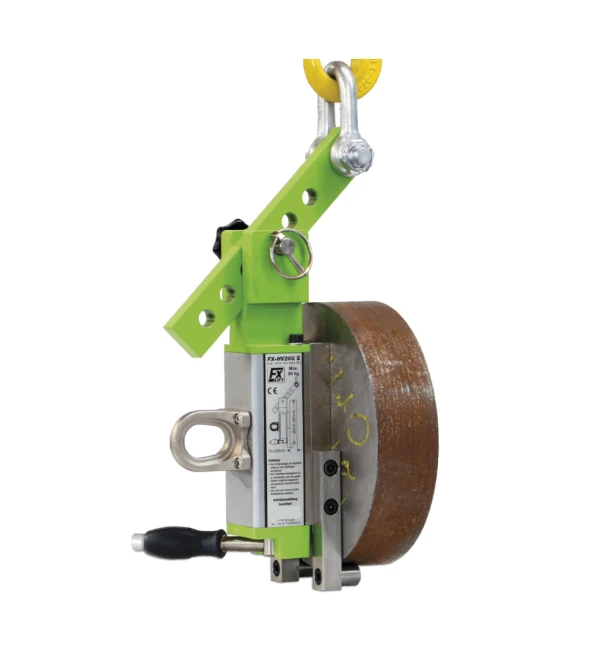

Horizontal - Vertical Permanent Magnetic System FX-HV200
200kg
Code
15FXHVO08N000040003900N
FX-HV 200 horizontal/vertical magnetic handling system. For loads up to 200 kg.
€ 1.498,00
EXCLUDING VAT and
and shipping costs

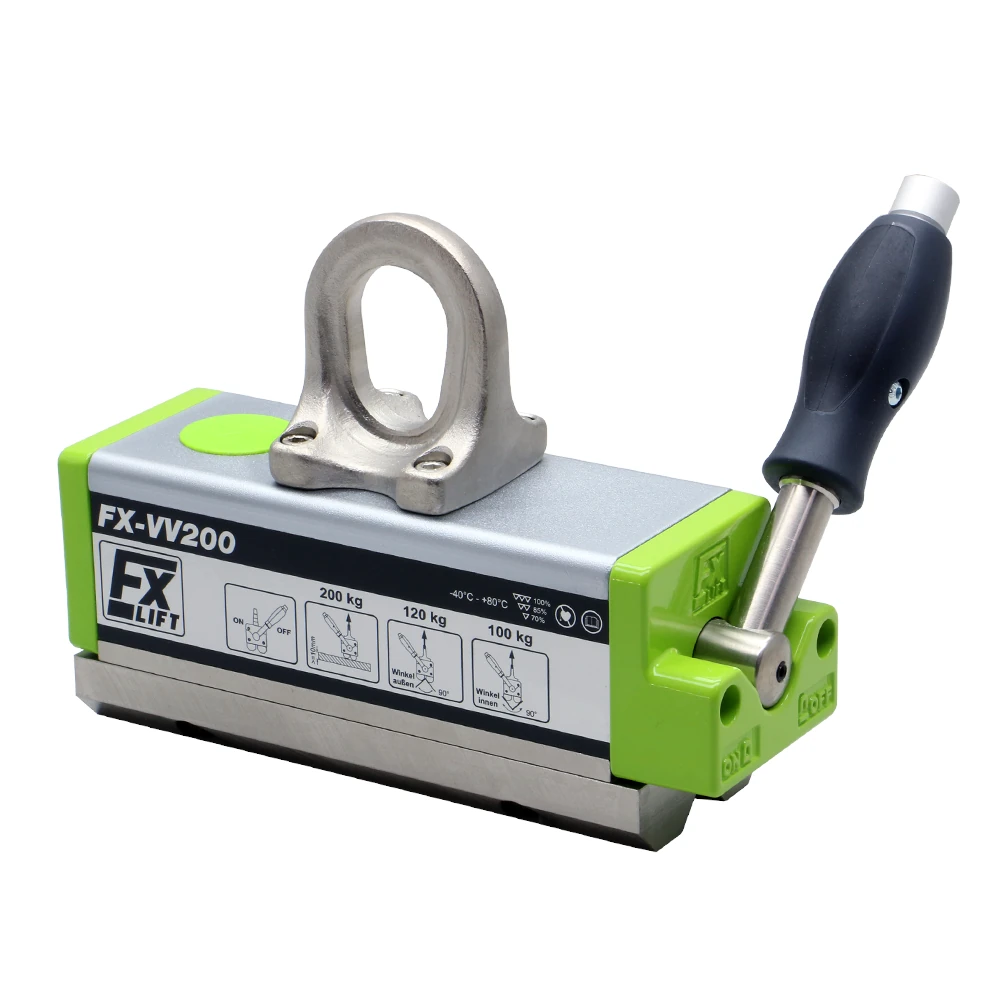

Permanent Magnetic Lifter for Profiles and High temperatures FX-VV200
