Permanent Magnetic Lifter for High temperatures - more than 250° FX-VV600 HOT
600kg

Permanent Magnetic Lifter for High temperatures – more than 250° FX-VV600 HOT

Code 15FXV0O08N348011201150N

FX-VV600 HOT; Permanent magnetic lifter - 90° prism; for high temperature materials up to 350°C

Material NdFeB Magnetization direction

Data Sheet

1.724,00
EXCLUDING VAT and and shipping costs

Out of stock

Safe delivery
Invoice for companies
Verified eCommerce
Personalized support

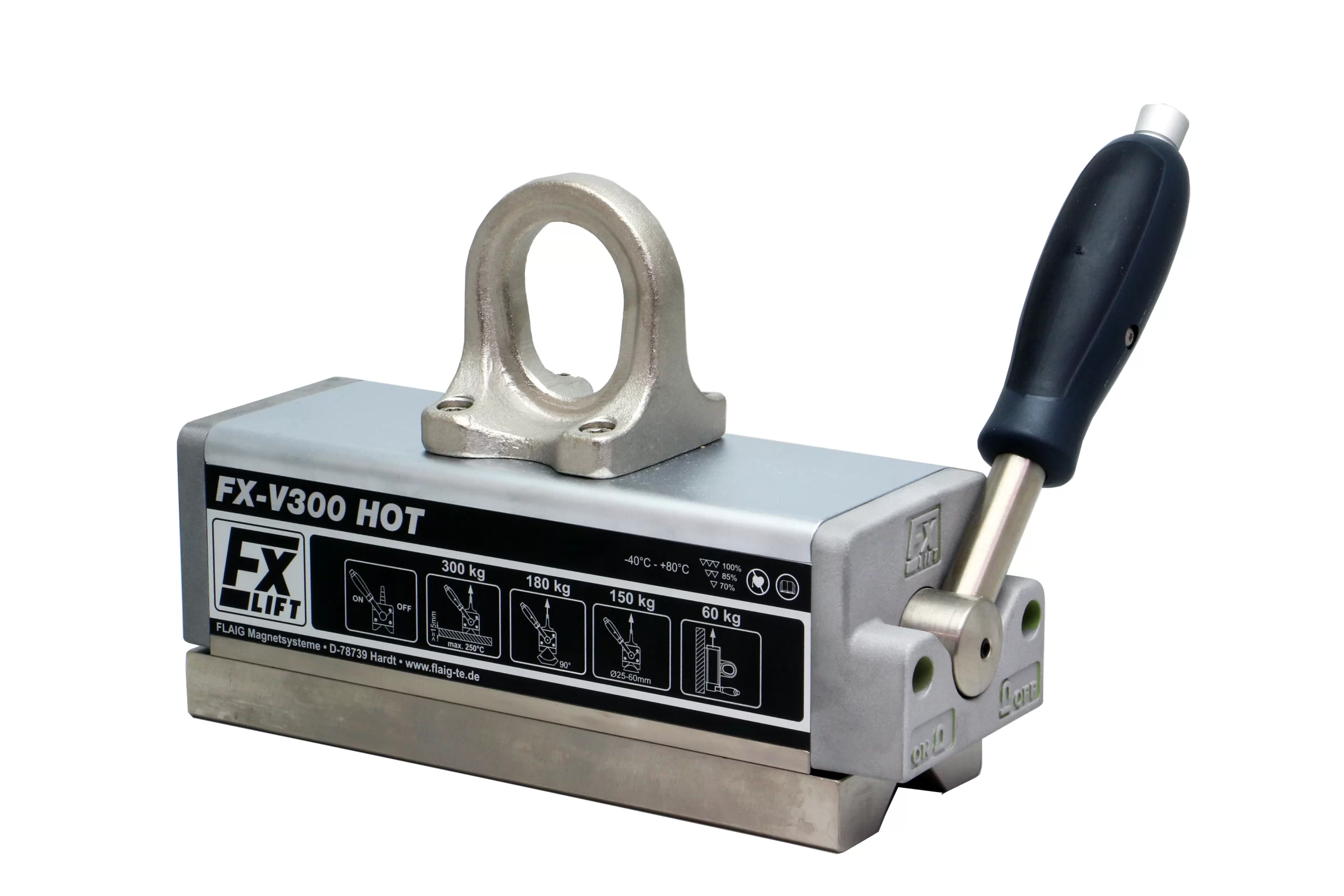

FX-VV HOT magnetic lifters are particularly suitable for use in high temperature processing. Thanks to the 90 ° prism, even corner profiles can be raised. In lifting parts after hot cutting, the deep prism protects the magnets inserted in the magnetic core from heat, bringing the limit of use up to 350 ° C Like all models of the series, FX-VV HOT has the body of the lifter completely nickel-plated and provides excellent results even on rough surfaces.

Large
348 mm
Lenght
112 mm
Heigth
115 mm
Heigth Body H1
210 mm
Lever lenght R
228 mm
Max Load from Thickness material mm
20 mm
Eyelet dimensions
51/62
Weight
28 kg

News

Maximum holding capacity of a magnet

Maximum holding capacity of a magnet

27-11-2025

The holding capacity indicated in the data shown is always indicative only. It is measured using a smooth sheet of metal with the optimal thickness. The tensile force acts perpendicularly. With a force acting parallel to the sheet, i.e., when the magnet moves along the sheet, the magnet’s lifting capacity is significantly lower.
