Name: Permanent Magnetic Chuck PMNEO 2515
SKU: dae2b58b016d
Availability: InStock

Permanent Magnetic Chuck PMNEO 2515

Code 20072515

Permanent Magnetic Chuck PMNEO 2515 suitable for mechanical processing where it is higher holding force is required

Material NdFeB Magnetization direction

€ 1.523,00 ^€1.370,00

EXCLUDING VAT and and shipping costs

Manual activated permanent magnetic chuck PMNEO 2515 Lenght 250 mm , Large 150 mm , Height 56 mm , Holding force = 150 N/cm2.Use is reccomended even on rough surfaces where good holding forces are still achieved.

Large

250 mm

Lenght

150 mm

Heigth

56 mm

Polar pitch

11 + 4

Weight

17 kg

Data Sheet

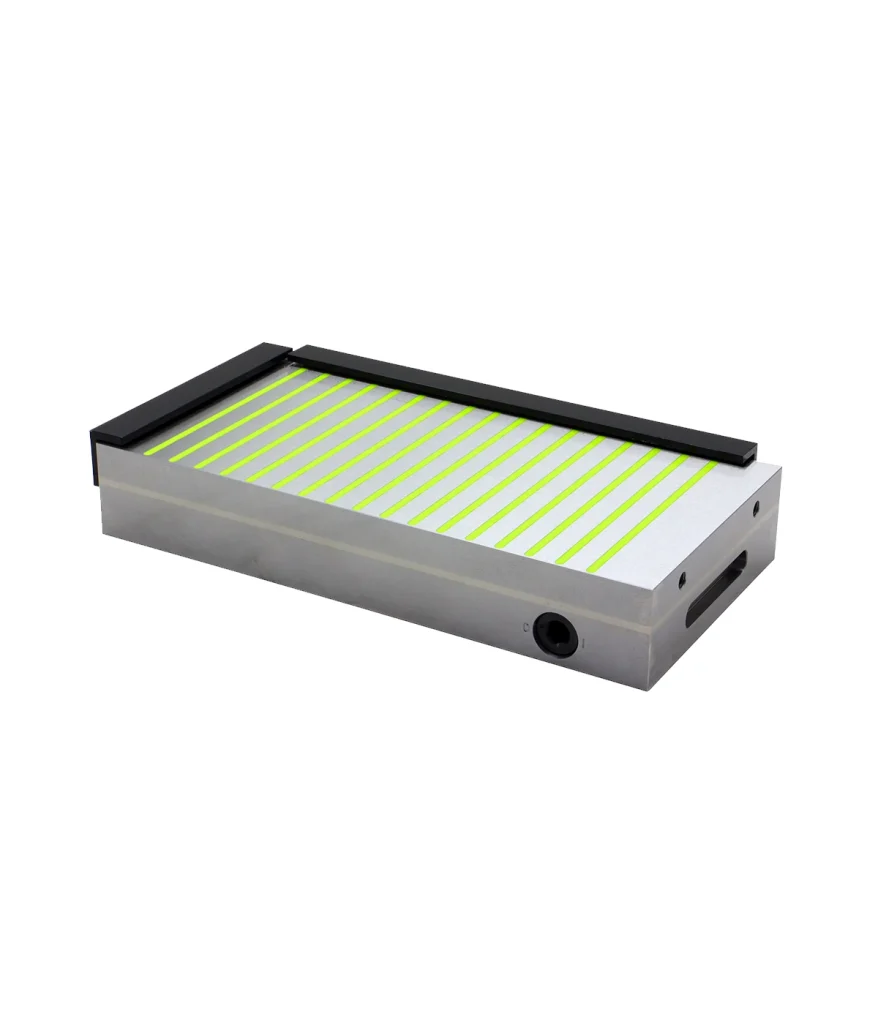

Permanent Magnetic Chuck PMNEO-X 3015

150 N/cm²

Code 20073015-01

Permanent Magnetic Chuck PMNEO-X 3015 suitable for mechanical processing where it is higher holding force is required

€ 1.689,00 € 1.520,00

EXCLUDING VAT and shipping costs

Permanent Magnetic Chuck PMNEO 3020

150 N/cm²

Code 20073020-01

Permanent Magnetic Chuck PMNEO 3020 suitable for mechanical processing where it is higher holding force is required

€ 2.314,00 € 2.082,00

EXCLUDING VAT and shipping costs
