Name: Permanent Magnetic Chuck PMNEO 3020
SKU: 0d93a2e4593b
Availability: InStock

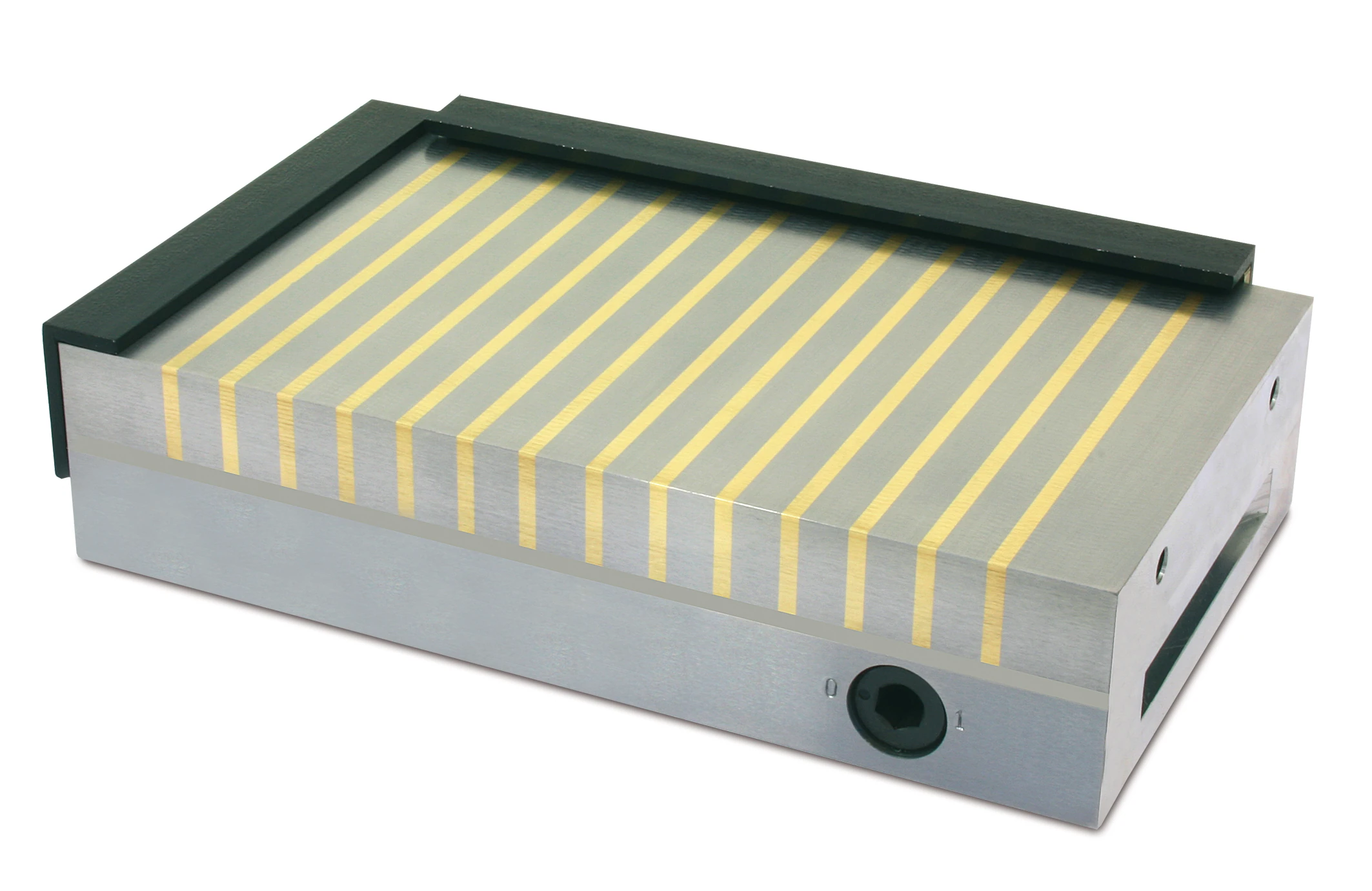

Permanent Magnetic Chuck PMNEO 3020

Code 20073020-01

Permanent Magnetic Chuck PMNEO 3020 suitable for mechanical processing where it is higher holding force is required

Material NdFeB Magnetization direction

€ 2.314,00 ^€2.082,00

EXCLUDING VAT and and shipping costs

Manual activated permanent magnetic chuck PMNEO 3020 Lenght 300 mm , Large 200 mm , Height 56 mm , Holding force = 150 N/cm2.Use is reccomended even on rough surfaces where good holding forces are still achieved.

Large

300 mm

Lenght

200 mm

Heigth

56 mm

Polar pitch

11 + 4

Weight

26 kg

Data Sheet

Permanent Magnetic Chuck PMNEO 3515

Code 16PMNEB08M350015000560M

Permanent Magnetic Chuck PMNEO 3515 suitable for mechanical processing where it is higher holding force is required

€ 1.298,00

EXCLUDING VAT and shipping costs

Available on backorder

Permanent Magnetic Chuck PMNEO-X 3015

150 N/cm²

Code 20073015-01

Permanent Magnetic Chuck PMNEO-X 3015 suitable for mechanical processing where it is higher holding force is required

€ 1.689,00 € 1.520,00

EXCLUDING VAT and shipping costs
