Manual activated circular permanent magnetic chuck RM 30 Diameter 300 mm , Height 85 mm , Holding force = 140 N/cm2.Use is reccomended for mechanical machining of milling.
140N/cm2

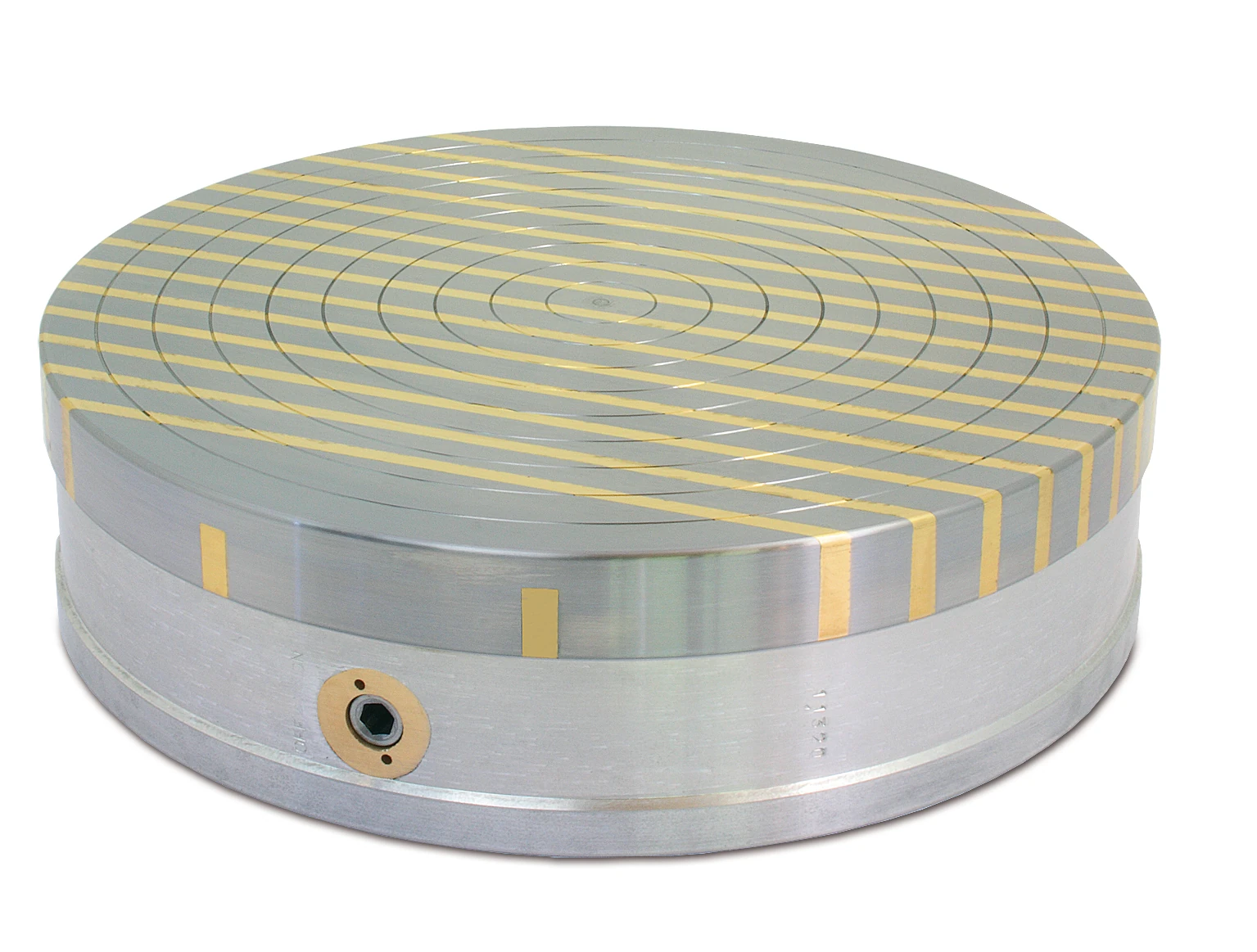

Permanent Magnetic Chuck RM 30
Code 16RM00D08M300025000850M
Permanent Magnetic Chuck 2344 suitable for turning and grinding of medium size parts
Material
NdFeB
Magnetization direction
€2.344,00
EXCLUDING VAT and
and shipping costs
Safe delivery
Invoice for companies
Verified eCommerce
Personalized support
Heigth
85 mm
Ø
300 mm
Ø int
250 mm
Internal Thick
4.5 mm
Ø 2
285 mm
Polar pitch
5 + 8
Weight
27 kg
