Manual activated circular permanent magnetic chuck RM 40
Diameter 400 mm , Height 100 mm , Holding force = 140 N/cm2.
Use is recommended for mechanical machining of milling.
More info on vegatechnik.com
140N/cm2
Permanent Magnetic Chuck RM 40
Code 210140
Permanent Magnetic Chuck RM 40 suitable for turning and grinding of medium size parts.
Material
Ferrite + Aluminium
Magnetization direction
Polar pitch 5 + 8 mm
€ 5.570,00
€5.013,00
EXCLUDING VAT and
and shipping costs
Available on backorder
Safe delivery
Invoice for companies
Verified eCommerce
Personalized support

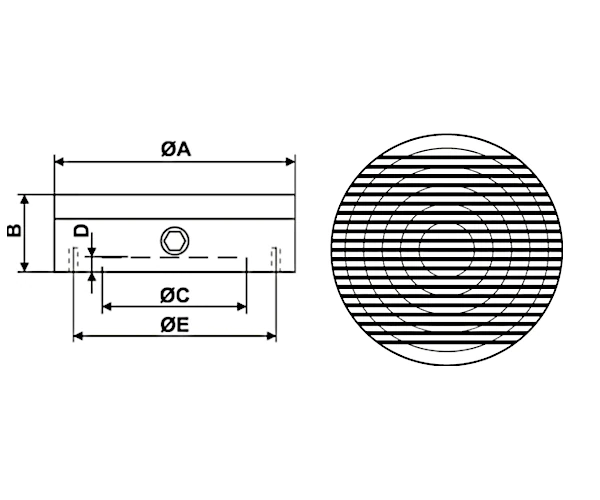

Heigth B
100 mm
Ø A
400 mm
Ø int C
300 mm
Internal Thickness D
5 mm
Ø int E
350 mm
Polar pitch
5 + 8 mm
Weight
56 kg
