Ferrite with threaded pin
Ferrite holding magnets with steel base, thanks to the threaded stem they can be quickly screwed into existing threads.
Total products
7
Holding Pot HM 16 x 4,5 x M3 out x 11,5 with threaded pin M3
1.30kg
Code
040000N03M016000700045H
Ferrite Holding Pot Magnet with threaded pin M3 and dimension Outer diameter 16, Magnet Height 4.5, Pin Height 7 Holding Force Max. = 1.3 Kg. Axial Magnetization [Along Height]
Out of stock
Holding Pot HM 20 x 6 x M3 out x 13 with threaded pin M4
2.10kg
Code
040000N03M020000700060H
Ferrite Holding Pot Magnet with threaded pin M4 and dimension Outer diameter 20, Magnet Height 6, Pin Height 7 Holding Force Max. = 2.1 Kg. Axial Magnetization [Along Height]
Holding Pot HM 25 x 7 x M4 out x 15 with threaded pin M4
4.60kg
Code
040000N03M025000800070H
Ferrite Holding Pot Magnet with threaded pin M4 and dimension Outer diameter 25, Magnet Height 7, Pin Height 8 Holding Force Max. = 4.6 Kg. Axial Magnetization [Along Height]

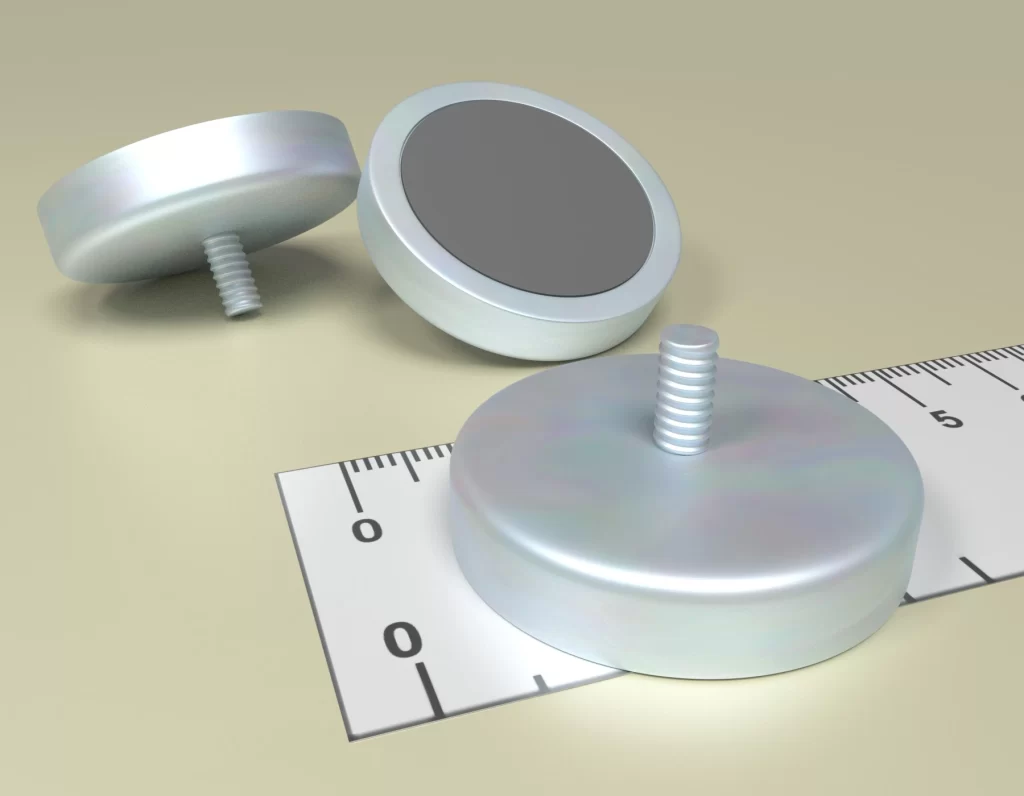

Holding Pot HM 32 x 7 x M4 out x 15 with threaded pin M4
9.40kg
Code
040000N03M032000800070H
Ferrite Holding Pot Magnet with threaded pin M4 and dimension Outer diameter 32, Magnet Height 7, Pin Height 8 Holding Force Max. = 9.4 Kg. Axial Magnetization [Along Height]

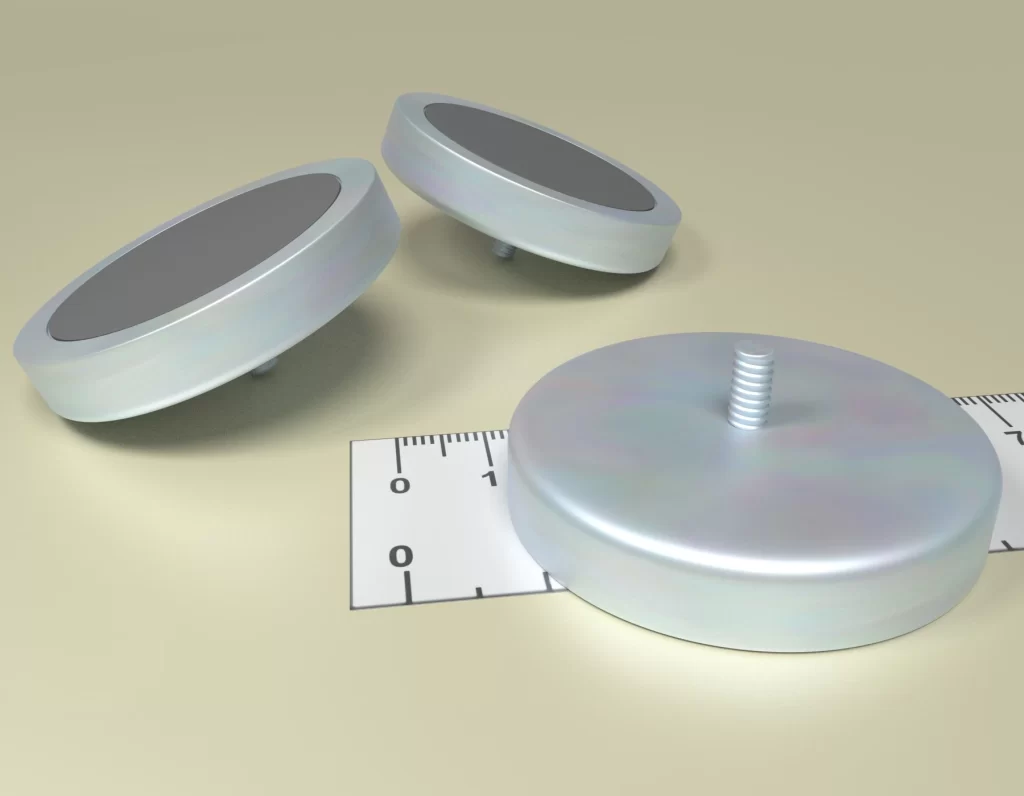

Holding Pot HM 47 x 9 x M4 out x 17 with threaded pin M4
19.30kg
Code
040000N03M047000800090H
Ferrite Holding Pot Magnet with threaded pin M4 and dimension Outer diameter 47, Magnet Height 9, Pin Height 8 Holding Force Max. = 19.3 Kg. Axial Magnetization [Along Height]

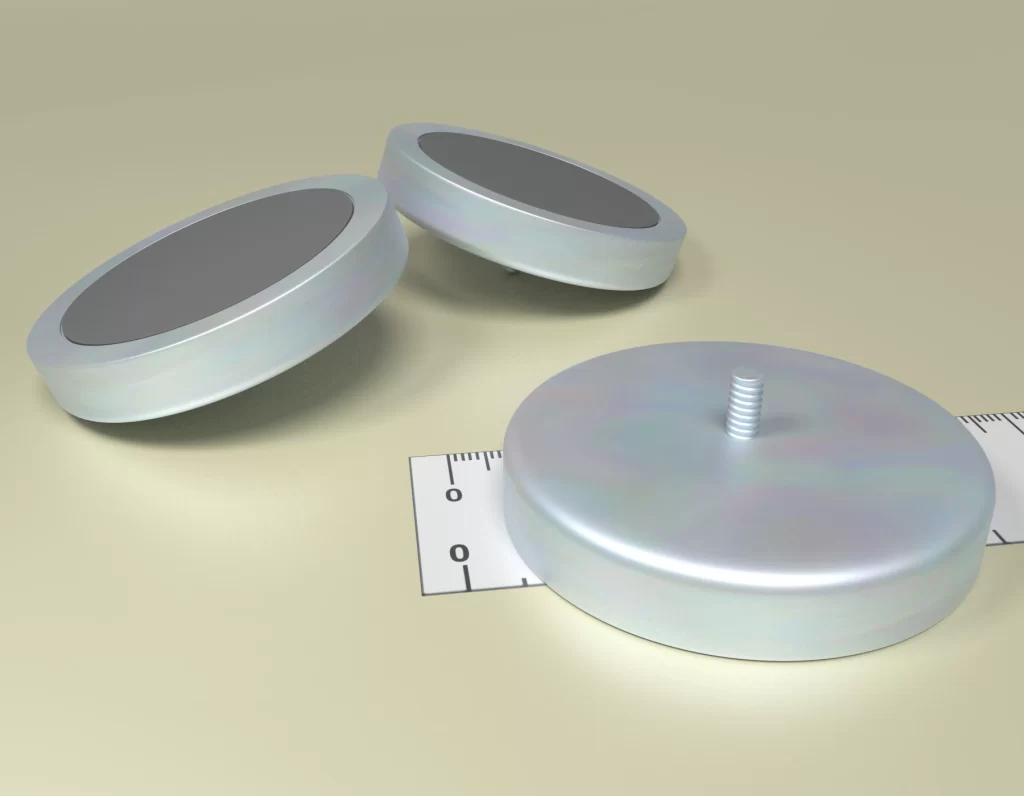

Holding Pot HM 57 x 10,5 x M4 out x 18,5 with threaded pin M6
35.60kg
Code
040000N03M057000800105H
Ferrite Holding Pot Magnet with threaded pin M6 and dimension Outer diameter 57, Magnet Height 10.5, Pin Height 8 Holding Force Max. = 35.6 Kg. Axial Magnetization [Along Height]

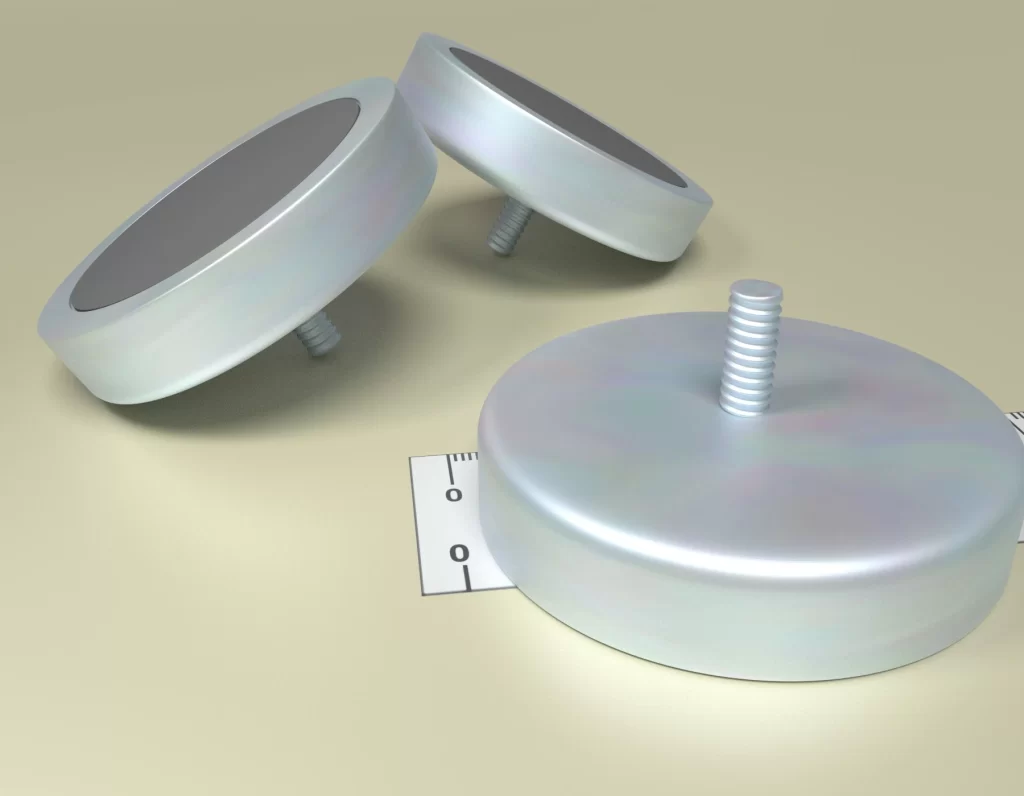

Holding Pot HM 63 x 14 x M6 out x 29 with threaded pin M6
39.00kg
Code
040000N03M063001500140H
Ferrite Holding Pot Magnet with threaded pin M6 and dimension Outer diameter 63, Magnet Height 14, Pin Height 15 Holding Force Max. = 39 Kg. Axial Magnetization [Along Height]
These Ferrite holding magnets have a threaded stem and can be screwed directly onto other objects. They consist of a Ferrite magnet inserted into a steel base. The steel base allows the force of the magnet to be concentrated and protects it from impacts.
