Holding Magnets
Holding magnets are considered the ultimate solution for clamping, gripping and securing components together.
Total products
107

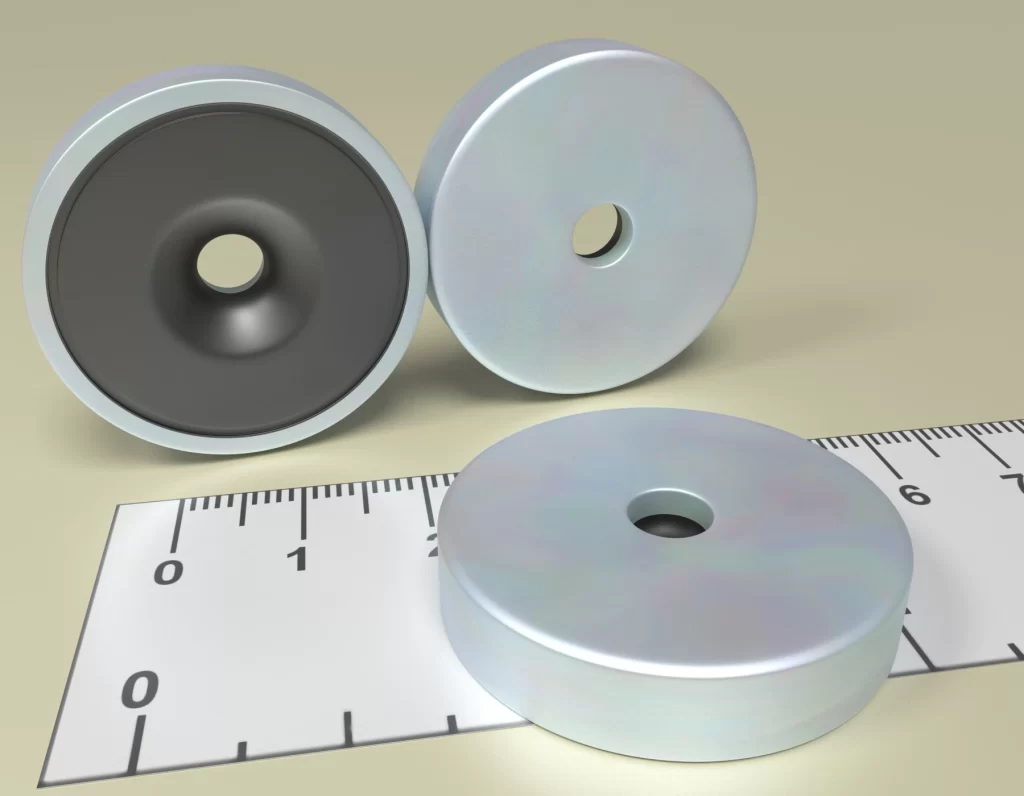

Holding POT HM 32 x 11,5/5,5 x 7 - Ferrite Magnet with countersunk hole
9.00 kg
Code
040000A03M032000550070H
Ferrite Holding Pot Magnet with countersunk hole dimensionons Ø=32 mm. Ø Int.= 11.5 / 5.5 mm. H=7 mm - Holding Force Max. = 9 Kg. Coating Zinc - Direction of Magnetization Axial [Along Height]
Holding Pot HM 32 x 7 x M4 out x 15 with threaded pin M4
9.40 kg
Code
040000N03M032000800070H
Ferrite Holding Pot Magnet with threaded pin M4 and dimension Outer diameter 32, Magnet Height 7, Pin Height 8 Holding Force Max. = 9.4 Kg. Axial Magnetization [Along Height]
Holding POT HM 16x 4.5 Neodym magnet with threaded-bush M4 Total Height 11.5
9.5 kg
Code
013800D03M016000700045H
Neodymium Holding Pot Magnet with threaded bush M4 and dimension Outer diameter 16, Height 4.5 Holding Force Max. = 9.5 Kg. Zinc coated - Axial Magnetization [Along Height]
Holding POT HM 16x 4.5 Neodym magnet threaded pin M5 Height of Pin 8
10 kg
Code
013800P03M116000800045H
Neodymium Holding Pot Magnet with threaded pin M5 and dimension Outer diameter 16, Height 4.5 Holding Force Max. = 10 Kg. Zinc coated - Axial Magnetization [Along Height]
Holding POT HM 16x 4.5 Neodym magnet threaded pin M6 Height of Pin 8
10 kg
Code
013800P03M016000800045H
Neodymium Holding Pot Magnet with threaded pin M6 and dimension Outer diameter 16, Height 4.5 Holding Force Max. = 10 Kg. Zinc coated - Axial Magnetization [Along Height]
Neodym Holding Pot HM 20 x 8 x 3,1 x 4,5 with with cilidrical hole
10 kg
Code
013800N03M020000310045H
Neodymium Holding Pot Magnet with cilindrical hole and dimension Outer diameter 20, Internal Hole 8/3.1 Height 4.5 Holding Force Max. = 10 Kg. Zinc coated - Axial Magnetization [Along Height]

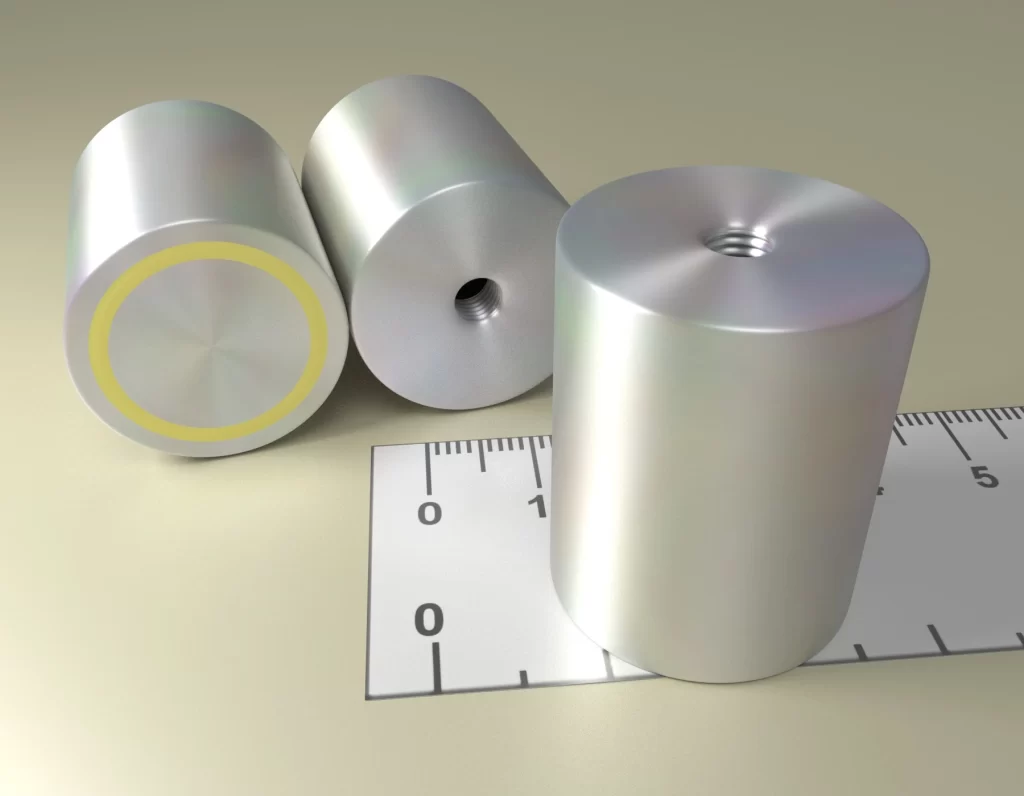

Holding POT HM 24 x 30 - Alnico Magnet with Thread type M5
10 kg
Code
07AL05E03M024000500300H
Alnico Holding Pot Magnet with Thread type M5 Dimensions Ø=24 mm. H=30 mm. - Holding Force Max. = 10 Kg. Coating Zinc - Direction of Magnetization Axial [Along Height]
Holding POT HM 40 x 17 x 5,5 x 8 - Ferrite Magnet with cilidrical hole
10.00 kg
Code
040000N03M040000550080H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 40, Internal Hole 17/5.5, Height 8 Holding Force Max. = 10 Kg. Axial Magnetization [Along Height]
Holding POT HM 36 x 9 x 4 x 7,7 - Ferrite Magnet with cilidrical hole
10.50 kg
Code
040000N03M036000400077H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 36, Internal Hole 9/4, Height 7.7 Holding Force Max. = 10.5 Kg. Axial Magnetization [Along Height]
Neodym Holding Rubber Magnet with Srew Hole D26,5 x d10,5/4,3 x 11,5 / N42 - NdFeB
10.60 kg
Code
014200C02M026502650115H
Rubber Neodymium Holding Magnet with Screw Hole, dimension Outer diameter 26,5, Screw Ø =10,5/4,3 mm, Height 11,5 Holding Force Max. = 10,6 Kg.- Axial Magnetization [Along Height]
Holding POT HM 47 x 19 x 5,5 x 9 - Ferrite Magnet with cilidrical hole
11.00 kg
Code
040000N03M047000550090H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 47, Internal Hole 19/5.5, Height 9 Holding Force Max. = 11 Kg. Axial Magnetization [Along Height]
Out of stock

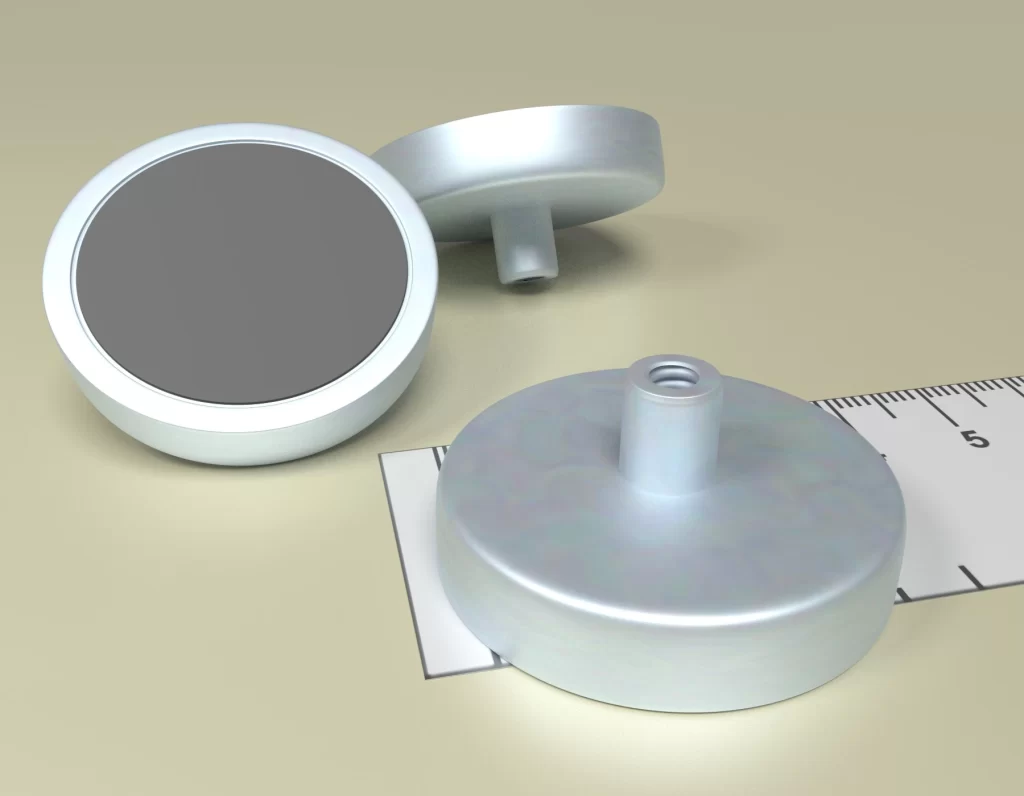

Holding POT HM 36x 7.7 Ferrite magnet with threaded-bush M4 Total Height 16
11.00 kg
Code
040000T03M036000830077H
Ferrite Holding Pot Magnet with threaded-bush M4 - Dimensions Outer diam. 36, Hight of magnet 7.7 , Total Height 16 Holding Force Max. = 11 Kg. Axial Magnetization [Along Height]
Out of stock
