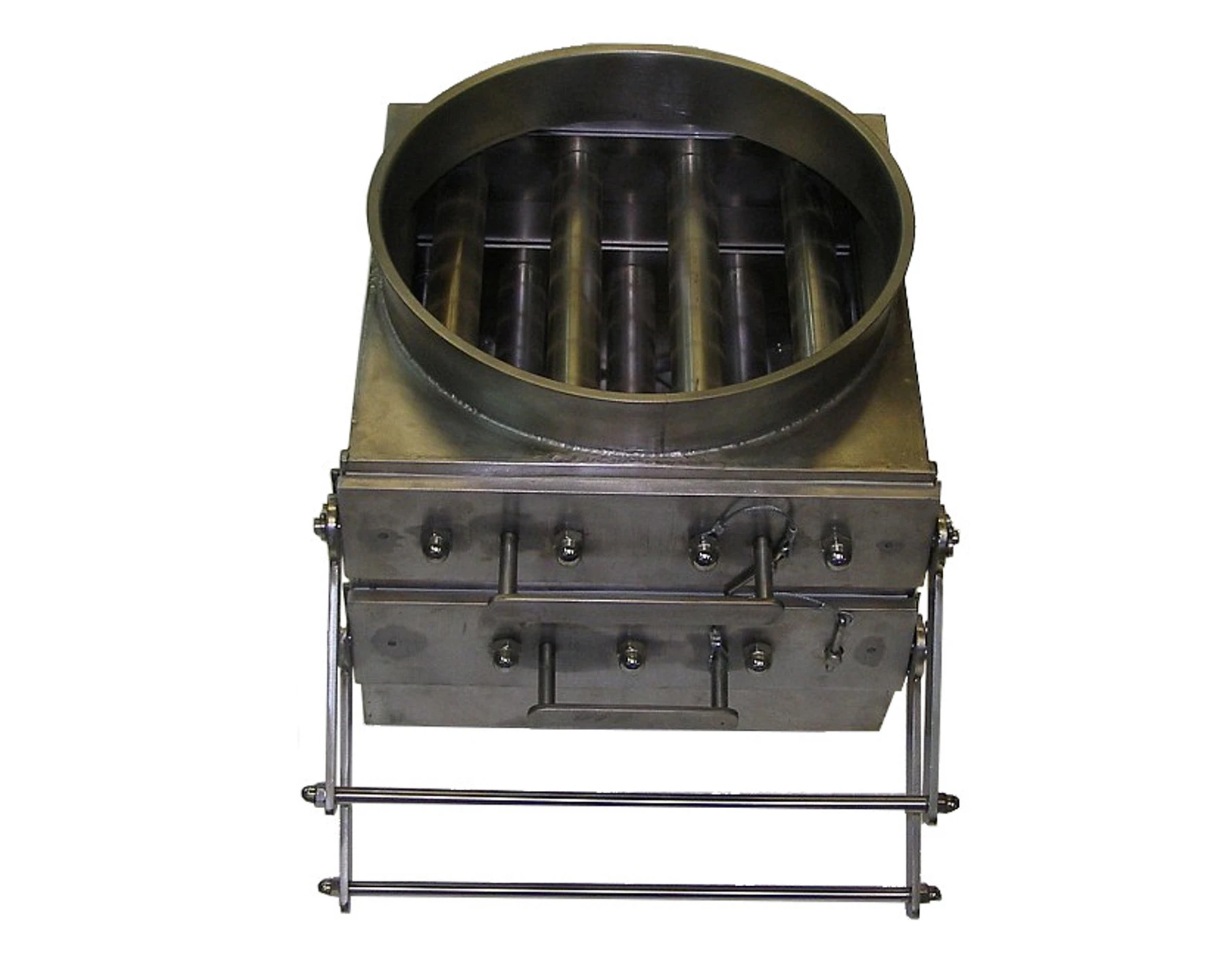

Separation magnetic drawers are used for catching magnetically soft elements (iron filings, bolts, etc.) from loose materials (e.g. powders, granulated products, grains etc.). They may be of use in food industry (as a version closed in acid-proof steel H18N9(1.4301)(304) and 1H18N9T(1.4541)(321) housing), as well as in plastics processing, ceramic an many other branches of industry.
Built-in magnetic grate made of acid-proof steel contains a magnetic system assembled with neodymium magnets. It is a surface of the seven incorporated into the separator magnetic filter bars of 32 mm in diameter which is magnetically active. Catched magnetically soft elements falls self-moving off after pushing the magnetic grate out of the box and senquentially pushing magnetic active parts out of protection tubes (see enclosure).
