Holding Magnets
Holding magnets are considered the ultimate solution for clamping, gripping and securing components together.
Total products
107

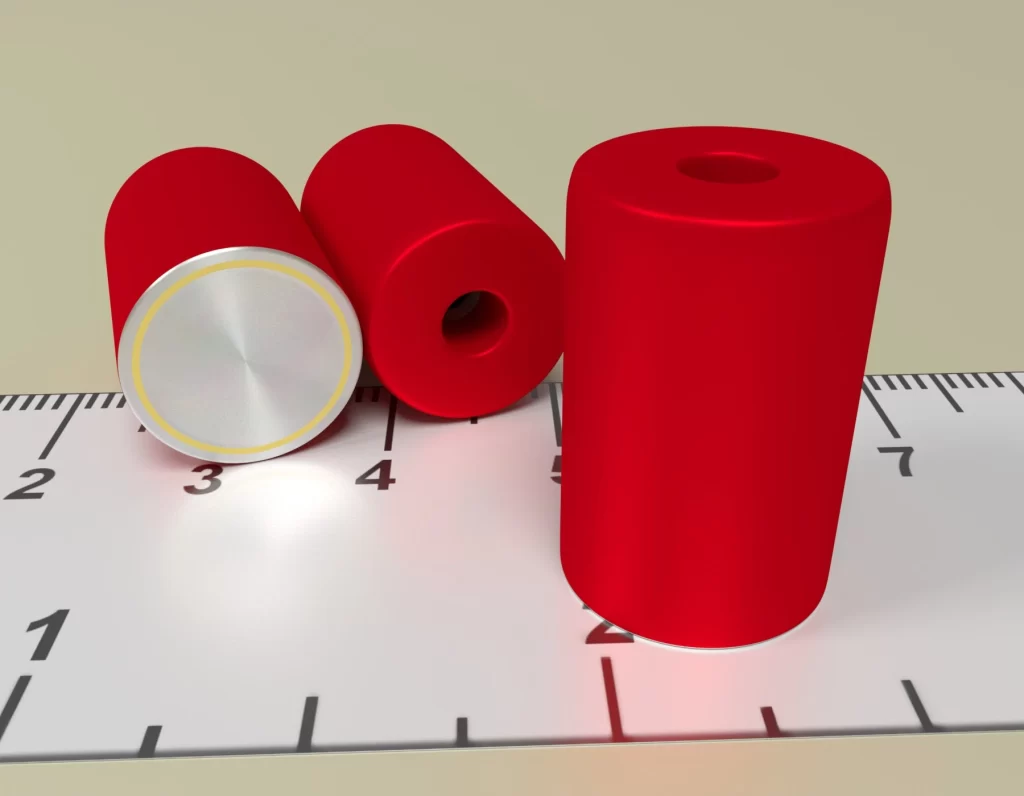

Holding POT HM 13 x 20 - Alnico Magnet with Thread type M4
2.5kg
Code
07AL05E07M013000400200H
Alnico Holding Pot Magnet with Thread type M4 Dimensions Ø=13 mm. H=20 mm. - Holding Force Max. = 2.5 Kg. Coating Lack - Direction of Magnetization Axial [Along Height]
Holding POT HM 25 x 7 - Ferrite Magnet with Thread type M4
2.50kg
Code
040000I03M025000400070H
Ferrite Holding Pot Magnet with Thread type M4 dimensionons Ø=25 mm. H=7 mm. - Holding Force Max. = 2.5 Kg. Coating Zinc - Direction of Magnetization Axial [Along Height]
Out of stock
Holding POT HM 10x 4.5 Neodym magnet threaded pin M4 Height of Pin 8
3kg
Code
013800P03M010000800045H
Neodymium Holding Pot Magnet with threaded pin M4 and dimension Outer diameter 10, Height 4.5 Holding Force Max. = 3 Kg. Zinc coated - Axial Magnetization [Along Height]

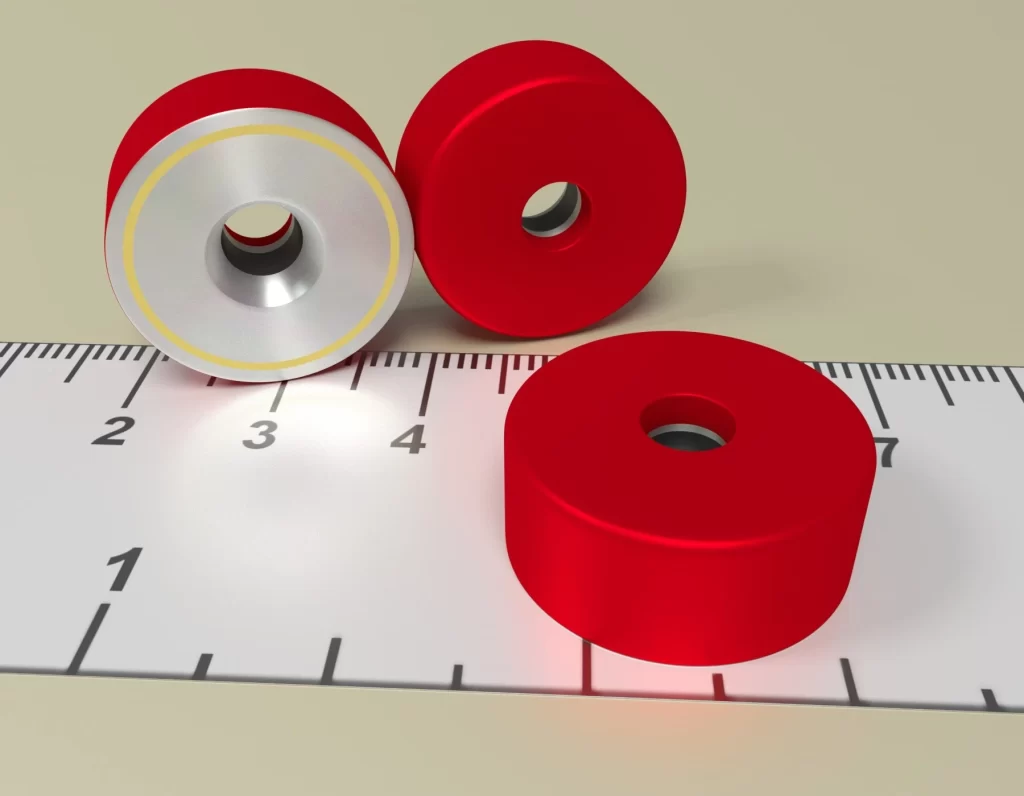

Holding POT HM 19,1 x 8,2/4,5 x 8 - Alnico Magnet countersunk hole
3kg
Code
07AL05N07M019100450080H
Alnico Holding Pot Magnet with countersunk hole Dimensions Ø=19.1 mm. Ø Int.= 8,2 / 4,5 H=8 mm. Holding Force Max. = 3 Kg. Coating Lack - Direction of Magnetization Axial [Along Height]
Holding POT HM 10x 4.5 Neodym magnet with threaded-bush M3 Total Height 11.5
3kg
Code
013800D03M010000700045H
Neodymium Holding Pot Magnet with threaded bush M3 and dimension Outer diameter 10, Height 4.5 Holding Force Max. = 3 Kg. Zinc coated - Axial Magnetization [Along Height]
Holding POT HM 25 x 7 x 4 x 7 - Ferrite Magnet with cilidrical hole
3.10kg
Code
040000N03M025000400070H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 25, Internal Hole 7/4, Height 7 Holding Force Max. = 3.1 Kg. Axial Magnetization [Along Height]

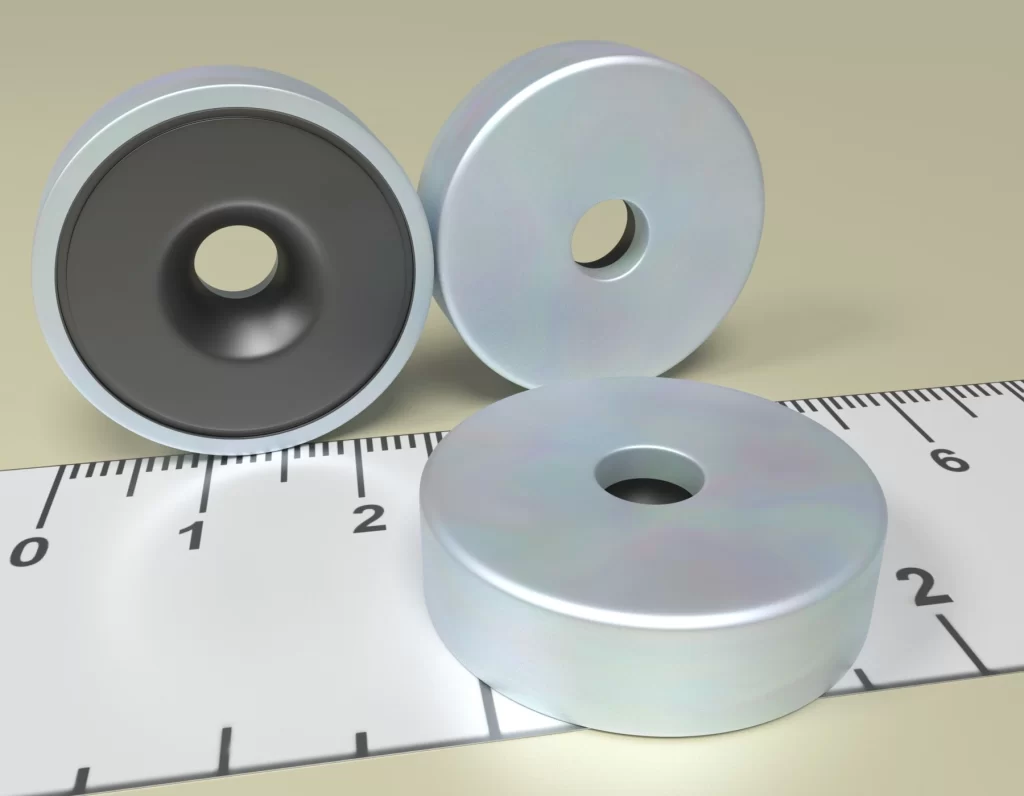

Holding POT HM 25 x 11,5/5,5 x 7 - Ferrite Magnet with countersunk hole
3.50kg
Code
040000A03M025000550070H
Ferrite Holding Pot Magnet with countersunk hole dimensionons Ø=25 mm. Ø Int.= 11.5 / 5.5 mm. H=7 mm - Holding Force Max. = 3,5 Kg. Coating Zinc - Direction of Magnetization Axial [Along Height]

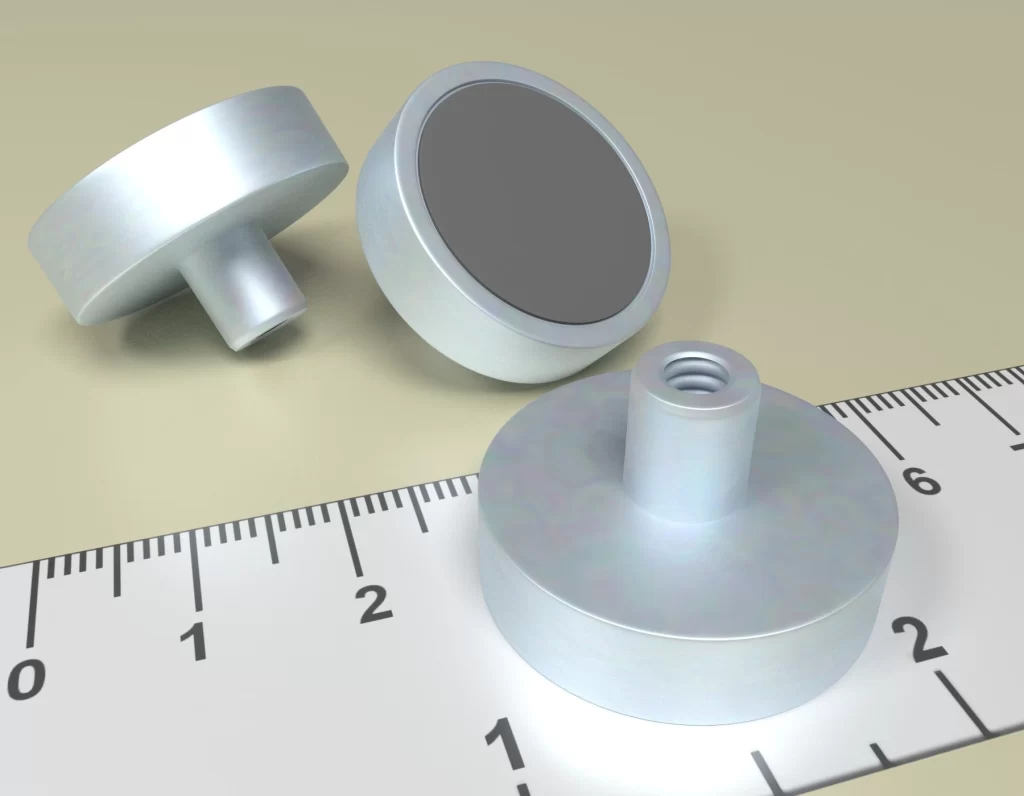

Holding POT HM 25x 7 Ferrite magnet with threaded-bush M4 Total Height 15
3.50kg
Code
040000T03M025000800070H
Ferrite Holding Pot Magnet with threaded-bush M4 - Dimensions Outer diam. 25, Hight of magnet 7 , Total Height 15 Holding Force Max. = 3.5 Kg. Axial Magnetization [Along Height]
Neodym Holding Pot HM 12 x 8 / M4 with Thread type M4
4kg
Code
013800E03M012000400080H
Neodymium Holding Pot Magnet with Thread type M4 and dimension Outer diameter 12, Height 8 Holding Force Max. = 4 Kg. Zinc coated - Axial Magnetization [Along Height]

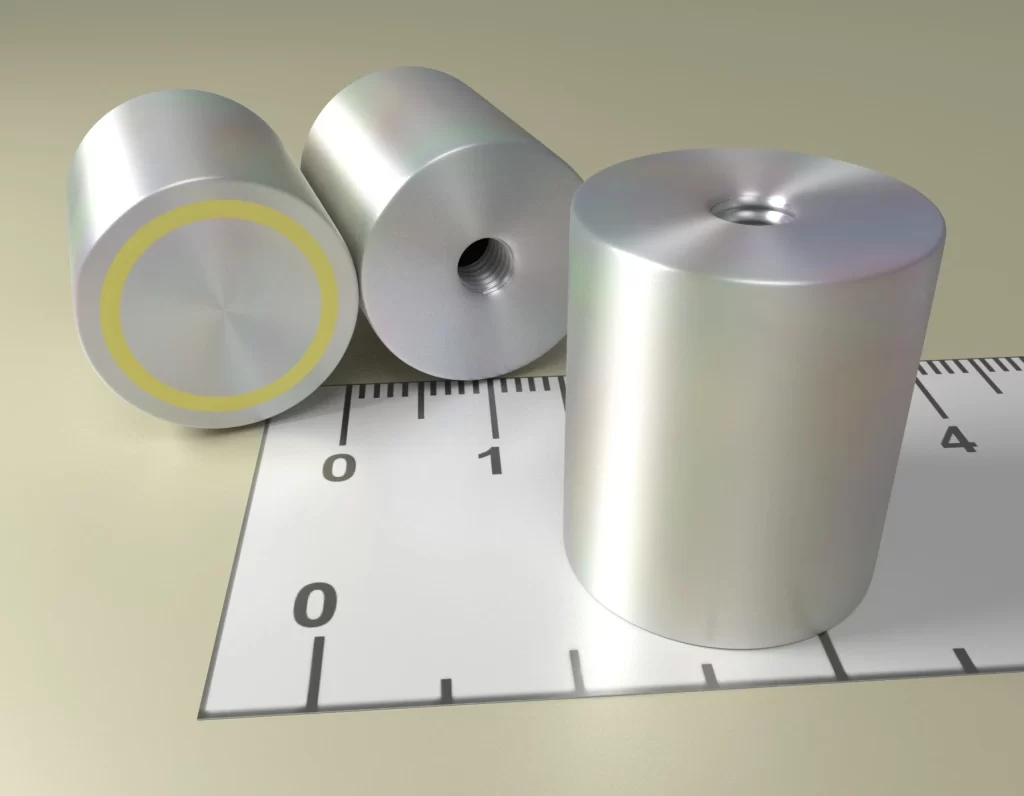

Holding POT HM 17 x 20 - Alnico Magnet with Thread type M4
4.5kg
Code
07AL05E03M017000400200H
Alnico Holding Pot Magnet with Thread type M4 Dimensions Ø=17 mm. H=20 mm. - Holding Force Max. = 4.5 Kg. Coating Zinc - Direction of Magnetization Axial [Along Height]
Holding Pot HM 25 x 7 x M4 out x 15 with threaded pin M4
4.60kg
Code
040000N03M025000800070H
Ferrite Holding Pot Magnet with threaded pin M4 and dimension Outer diameter 25, Magnet Height 7, Pin Height 8 Holding Force Max. = 4.6 Kg. Axial Magnetization [Along Height]
Neodym Holding Rubber Magnet with Srew Hole D21,5 x d7,2/3,6 x 6,5 / N42 - NdFeB
4.60kg
Code
014200C02M021502150065H
Rubber Neodymium Holding Magnet with Screw Hole, dimension Outer diameter 21,5, Screw Ø =7,2/3,6 mm, Height 6,5 Holding Force Max. = 4,6 Kg.- Axial Magnetization [Along Height]
