With Screw Hole
Neodymium countersunk hole magnetic rings are among the most used shapes for screwing magnets to another surface. They are produced with a particular NdFeB alloy and achieve extremely powerful attractive forces.
Total products
10
Neodymium Ring Magnet with screw hole D8 x d6/3,5 x 3 / N35 - NdFeB
0.89kg
Code
013500C02M008000600030H
Ring Magnet Neodymium with Screw Hole D8 x d6/3,5 x 3 / N35 - NdFeB Holding Force Max. = 0.82 Kg. Coating Nickel (Ni+Cu+Ni) Axial Magnetization [Along Height]
Neodymium Ring Magnet with screw hole D10 x d7/3,5 x 3 / N35 - NdFeB
1.29kg
Code
013500C02M010000700030H
Ring Magnet Neodymium with Screw Hole D10 x d7/3,5 x 3 / N35 - NdFeB Holding Force Max. = 1.39 Kg. Coating Nickel (Ni+Cu+Ni) Axial Magnetization [Along Height]

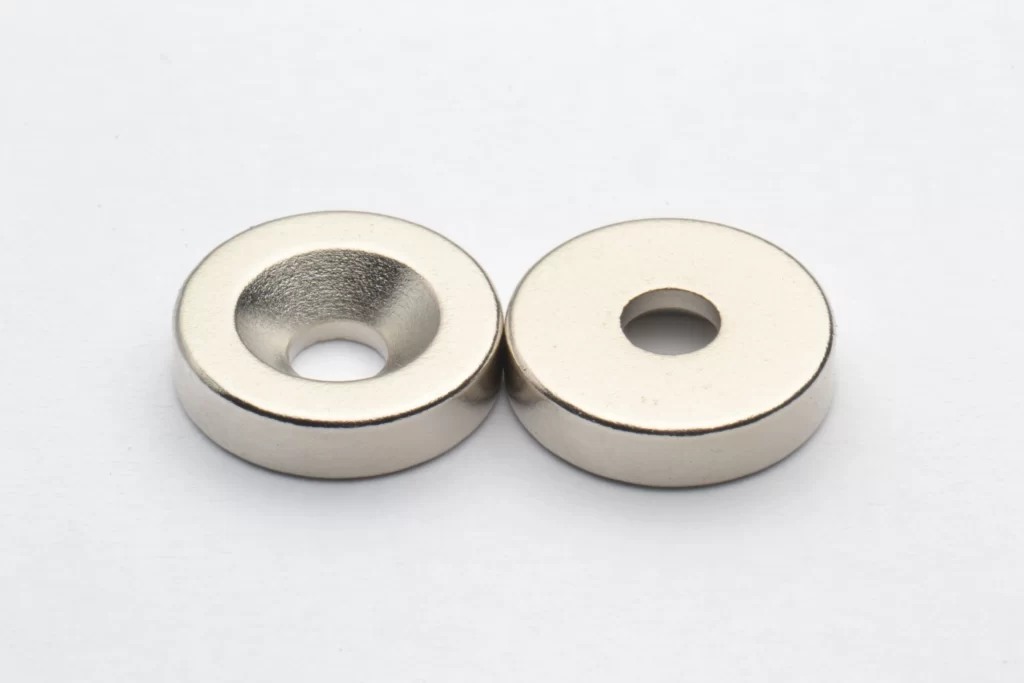

Neodymium Ring Magnet with screw hole D10 x d7,2/3,6 x 3 / N35 - NdFeB
2.01kg
Code
013800C02M010000720030H
Ring Magnet Neodymium with Screw Hole D10 x d7,2/3,6 x 3 / N38 - NdFeB Holding Force Max. = Kg. Coating Nickel (Ni+Cu+Ni) Axial Magnetization [Along Height]
Out of stock

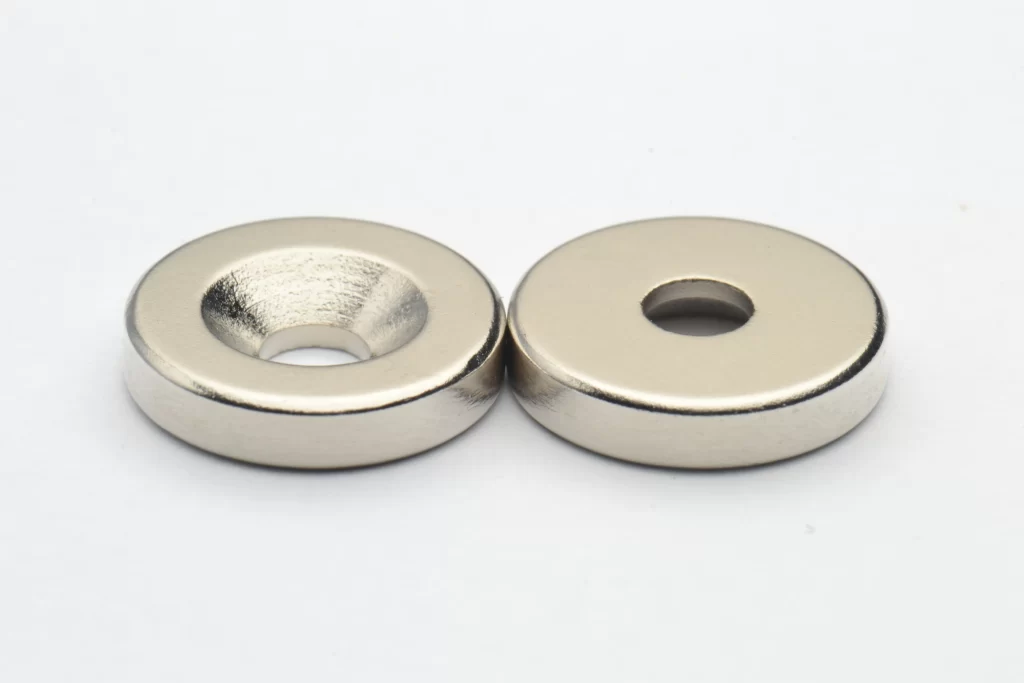

Neodymium Ring Magnet with screw hole D14 x d8/4 x 3 / N35 - NdFeB
2.58kg
Code
013500C02M014000800030H
Ring Magnet Neodymium with Screw Hole D14 x d8/4 x 3 / N35 - NdFeB Holding Force Max. = 2.58 Kg. Coating Nickel (Ni+Cu+Ni) Axial Magnetization [Along Height]

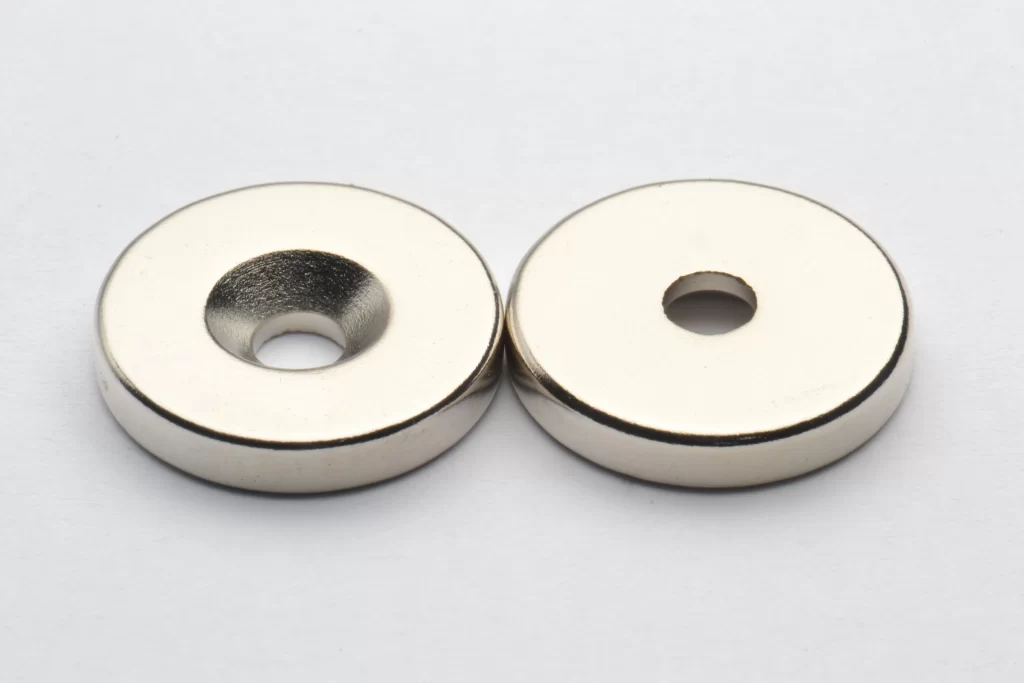

Neodymium Ring Magnet with screw hole D16 x d7,2/3,6 x 3 / N38 - NdFeB
3.05kg
Code
013800C02M016000720030H
Ring Magnet Neodymium with Screw Hole D16 x d7,2/3,6 x 3 / N38 - NdFeB Holding Force Max. = Kg. Coating Nickel (Ni+Cu+Ni) Axial Magnetization [Along Height]
Neodymium Ring Magnet with screw hole D20 x d7/3,5 x 3 / N38 - NdFeB
3.65kg
Code
013800C02M020000700030H
Ring Magnet Neodymium with Screw Hole D20 x d7/3,5 x 3 / N38 - NdFeB Holding Force Max. = Kg. Coating Nickel (Ni+Cu+Ni) Axial Magnetization [Along Height]

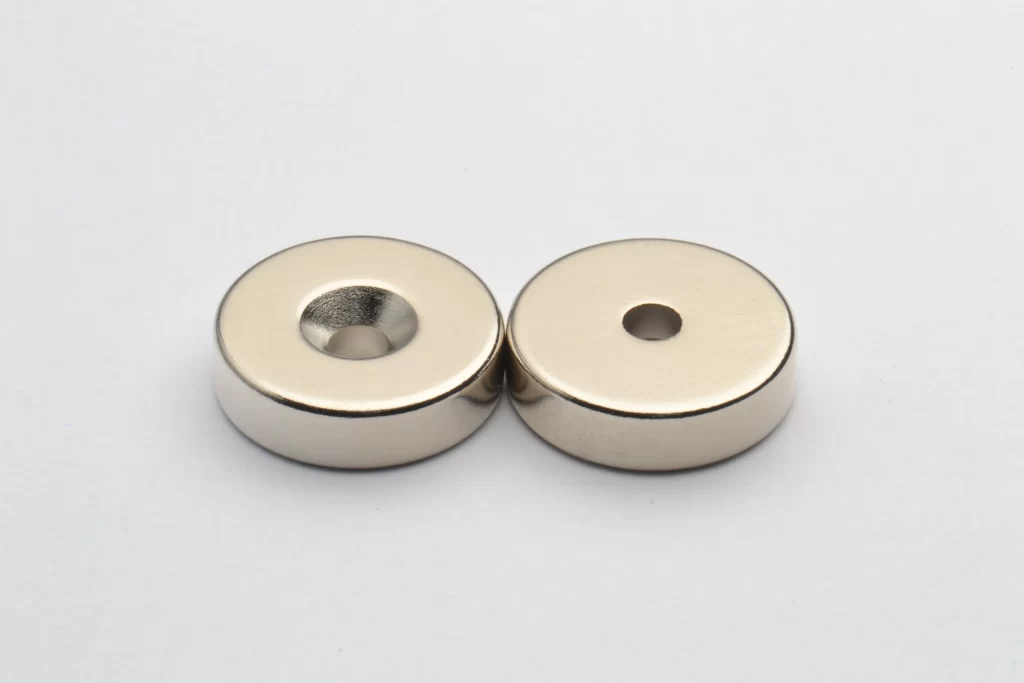

Neodymium Ring Magnet with screw hole D18 x d7,2/3,6 x 5 / N42 - NdFeB
6.47kg
Code
014200C02M018000720050H
Ring Magnet Neodymium with Screw Hole D18 x d7,2/3,6 x5 / N42 - NdFeB Holding Force Max. = Kg. Coating Nickel (Ni+Cu+Ni) Axial Magnetization [Along Height]

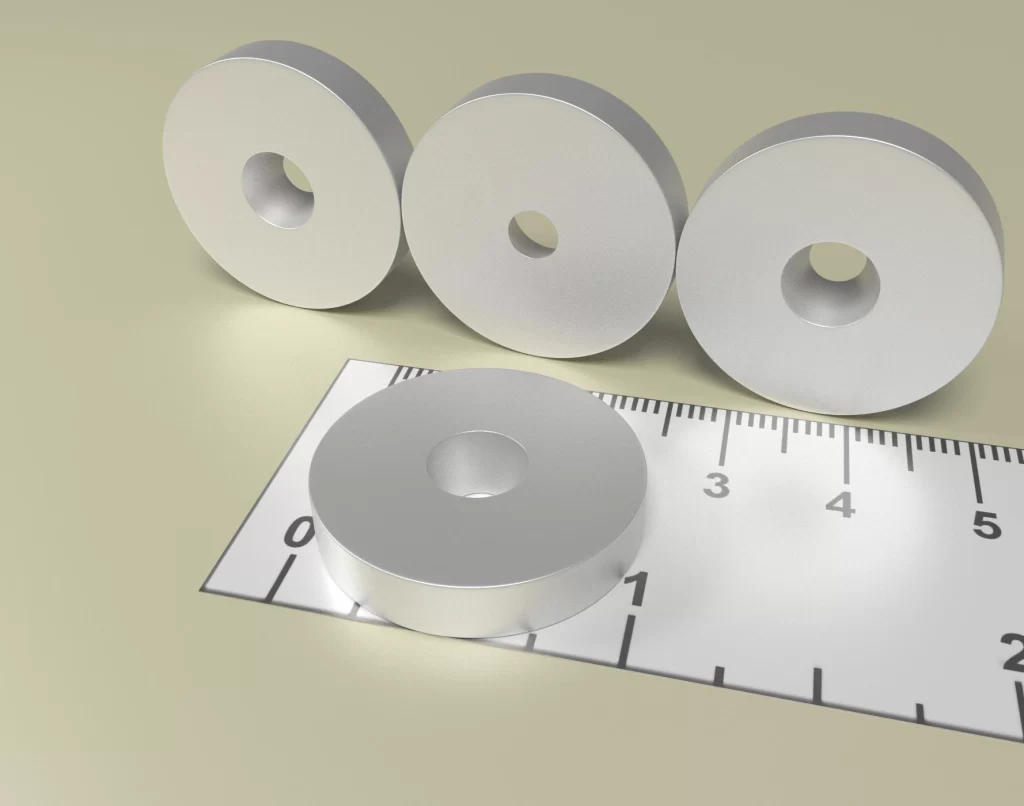

Neodymium Ring Magnet with screw hole D25 x d7,5/4,5 x 5 / N38 - NdFeB
8.44kg
Code
013500C02M025000750050H
Ring Magnet Neodymium with Screw Hole D25 x d7,5/4,5 x 5 / N38 - NdFeB Holding Force Max. = 7.85 Kg. Coating Nickel (Ni+Cu+Ni) Axial Magnetization [Along Height]

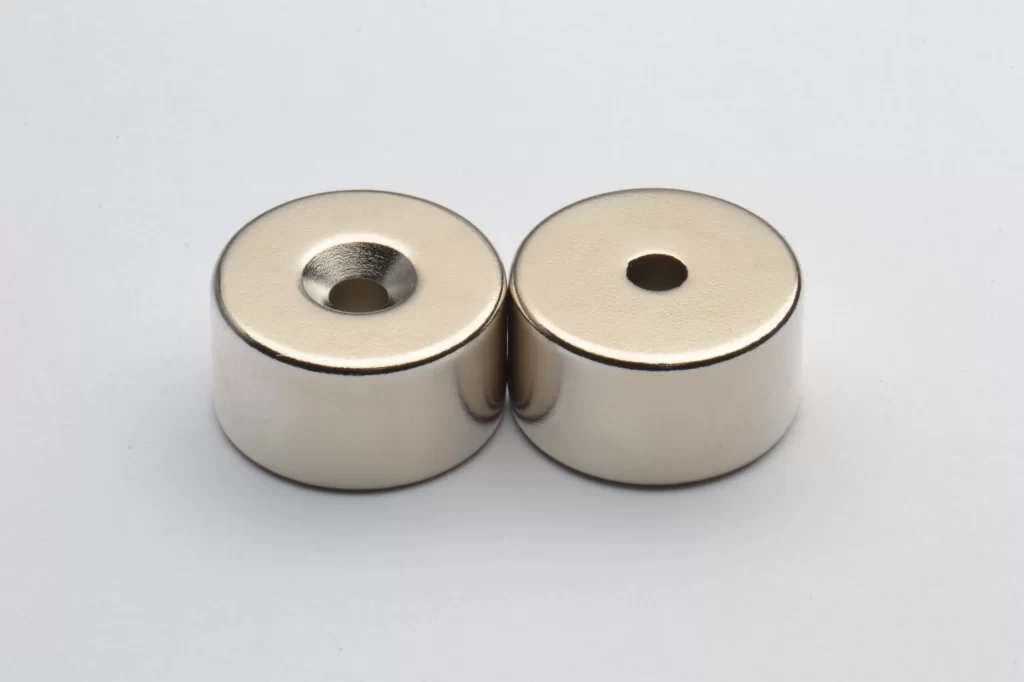

Neodymium Ring Magnet with screw hole D18 x d7,2/3,6 x 10 / N42 - NdFeB
9.79kg
Code
014200C02M018000720100H
Ring Magnet Neodymium with Screw Hole D18 x d7,2/3,6 x10 / N42 - NdFeB Holding Force Max. = Kg. Coating Nickel (Ni+Cu+Ni) Axial Magnetization [Along Height]

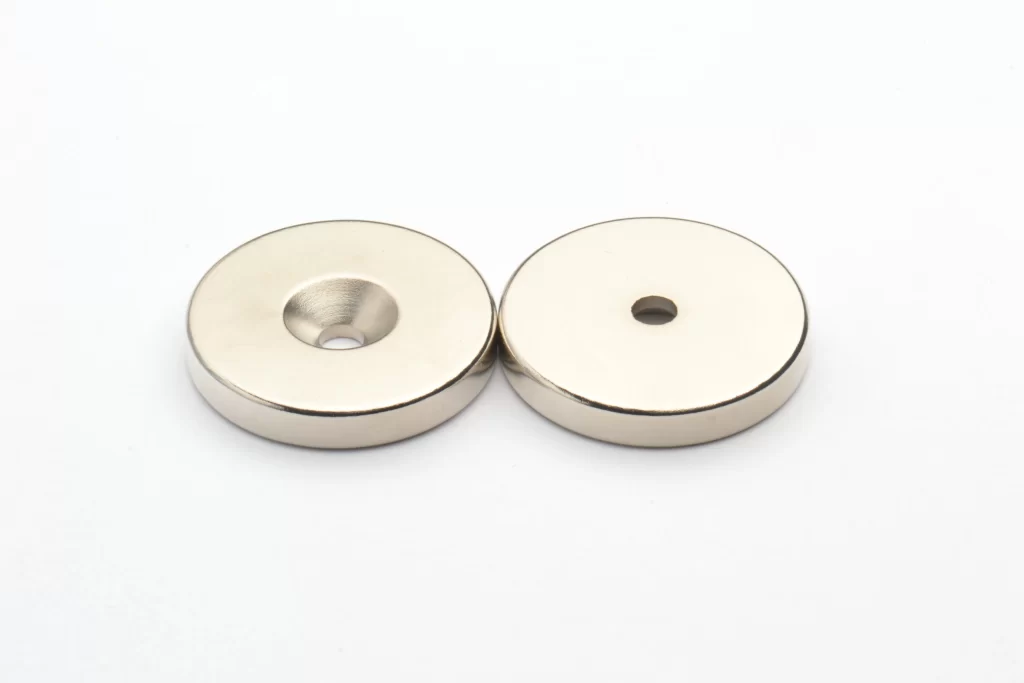

Neodymium Ring Magnet with screw hole D30 x d10,5/4,3 x 5 / N42 - NdFeB
11.55kg
Code
014200C02M030001050050H
Ring Magnet Neodymium with Screw Hole D30 x d10,5/4,3 x 5 / N42 - NdFeB Holding Force Max. = Kg. Coating Nickel (Ni+Cu+Ni) Axial Magnetization [Along Height]
Features of Neodymium ring magnets:
Neodymium ring magnets usually have the north and south poles on the two largest surfaces.
Operating temperature of block magnets:
Most Neodymium ring magnets can be used at temperatures up to 80 °C. Some ring magnets can withstand temperatures up to a maximum of 120 °C or 150 °C. The maximum operating temperature is indicated in the data sheet of the selected magnet.
Safety instructions:
When using large Neodymium ring magnets with high adhesive forces, special care must be taken and safety devices must be used as the risk of injury is very high. Find out more about this in our safety instructions. You can also contact us if you have any questions about our magnets.
