A magnetic beam mounted above a belt conveyor is used for catching of undesirable steel or iron elements from transported substances (food industry, processing of plastics, mineral raw materials, recycling, etc.). Mounted at a angle, can also be used as a chute separator. Watertight housing made of acid-proof steel OH18N9 (1.4301),(304) contains a magnetic circuit with neodymium magnets. It is a bottom surface of the beam which is magnetic active. The beam’s both ends are equipped with two threaded apertures M10 (spaced 38mm) for mounting.

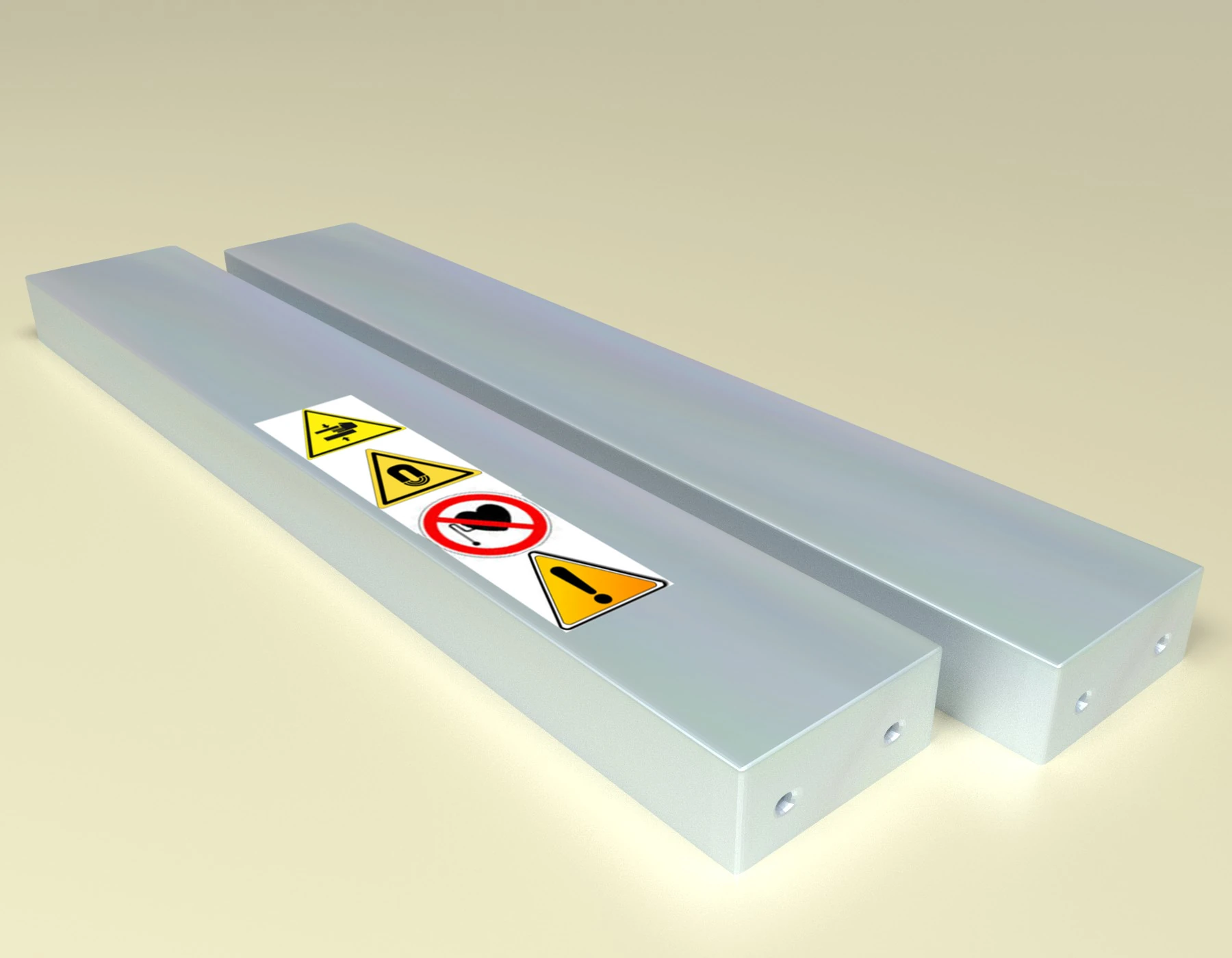

Magnetic beam for iron separation MB (waterproof) 850x120x60 / N
Code 180000B08M850012000600H
Magnetic beam for iron separation MB (waterproof) 850x120x60 / N . Stainless steel, AISI 304 / EN 1.4301, approved for contact with food.
Material
NdFeB
Magnetization direction
€2.612,50
EXCLUDING VAT and
and shipping costs
Safe delivery
Invoice for companies
Verified eCommerce
Personalized support
Range
max. 180 [mm] mm
Large
850 mm
Lenght
120 mm
Heigth
60 mm
Magnetic field in the center of surface
0,75 T
Weight
44.00 kg
