Holding Magnets
Holding magnets are considered the ultimate solution for clamping, gripping and securing components together.
Total products
107

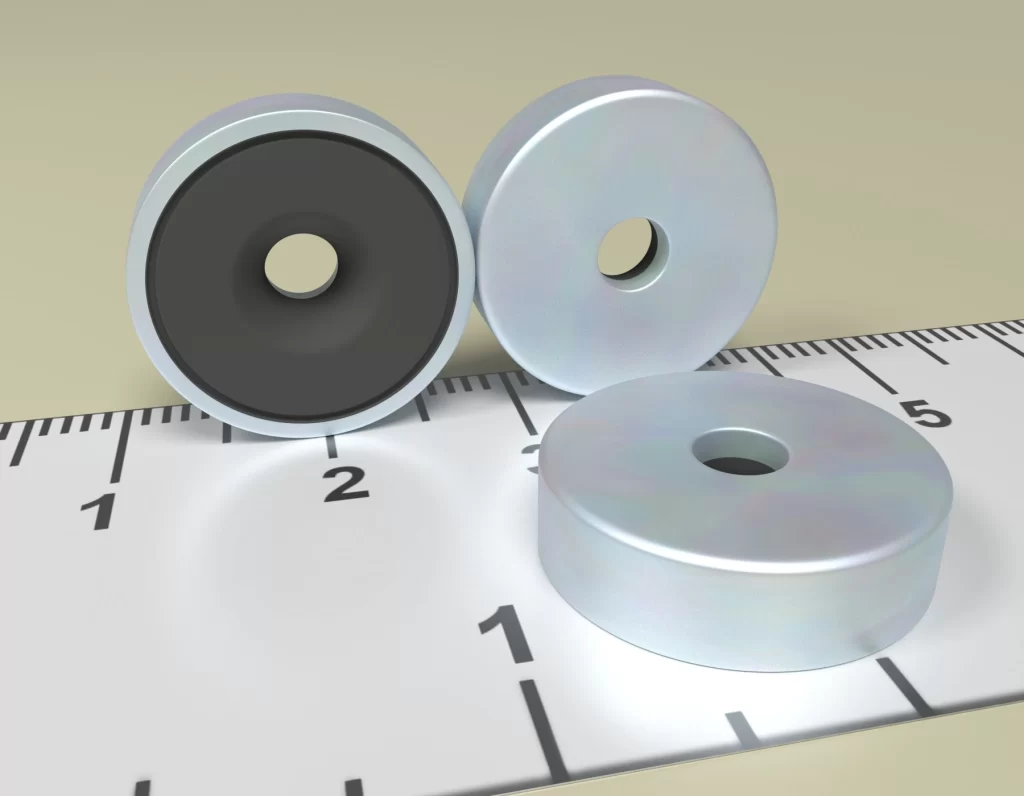

Holding POT HM 16 x 6,5/3,3 x 4,5 - Ferrite Magnet with countersunk hole
0.30kg
Code
040000A03M016000330045H
Ferrite Holding Pot Magnet with countersunk hole dimensionons Øext=16 mm.Øint.= 6.5 / 3.3 mm. H=4.5 mm H=18 mm. - Holding Force Max. = 0,3 Kg. Coating Zinc - Direction of Magnetization Axial [Along Height]

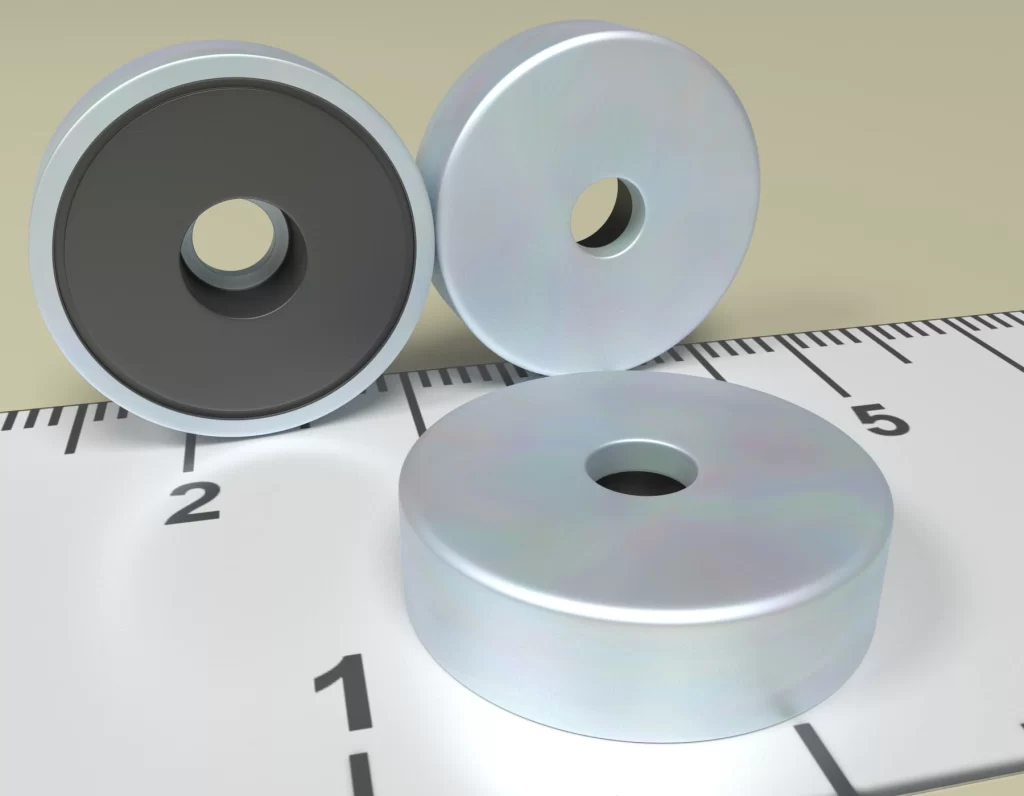

Holding POT HM 16 x 5 x 3,3 x 4,5 - Ferrite Magnet with cilidrical hole
0.50kg
Code
040000N03M016000330045H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 16, Internal Hole 5/3.3, Height 4.5 Holding Force Max. = 0.5 Kg. Axial Magnetization [Along Height]
Holding POT HM 8 x 8 - Alnico Magnet with Thread type M3
0.5kg
Code
07AL05E03M008000300080H
Alnico Holding Pot Magnet with Thread type M3 dimensionons Ø=8 mm. H=8 mm. - Holding Force Max. = 0.5 Kg. Coating Zinc - Direction of Magnetization Axial [Along Height]

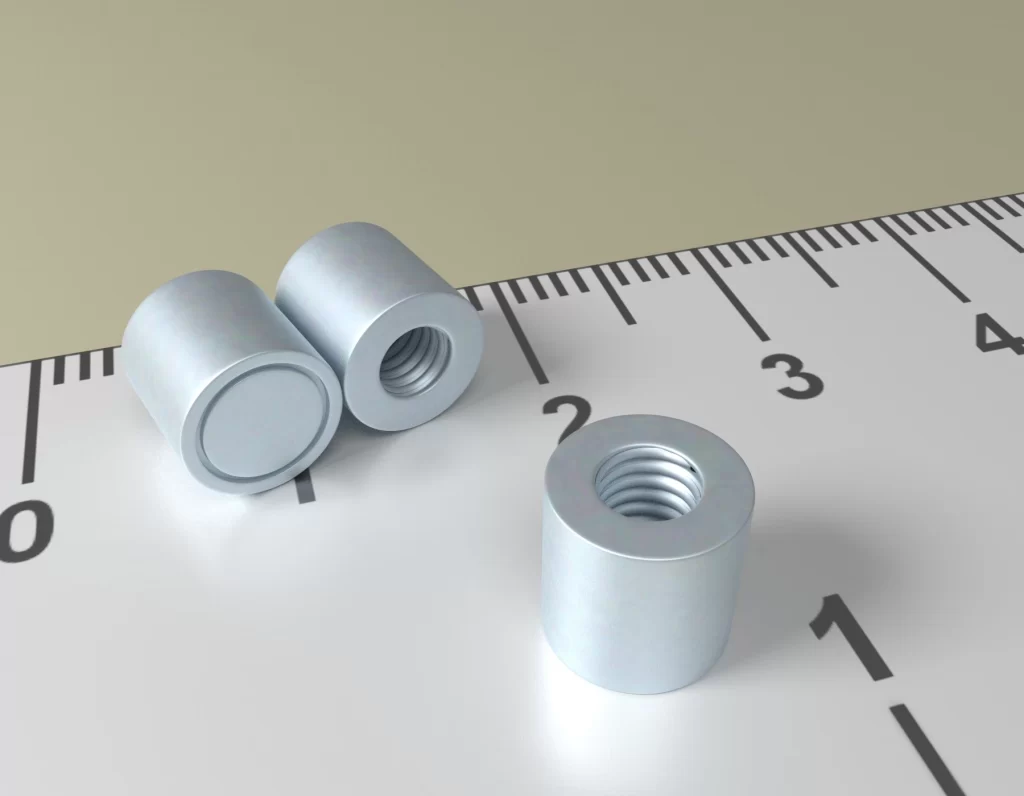

Neodym Holding Pot HM 6 x 6 / M3 with Thread type M3
0.7kg
Code
013800E03M006000300060H
Neodymium Holding Pot Magnet with Thread type M3 and dimension Outer diameter 6, Height 6 Holding Force Max. = 0.7 Kg. Zinc coated - Axial Magnetization [Along Height]
Holding POT HM 10 x 10 - Alnico Magnet with Thread type M3
0.8kg
Code
07AL05E03M010000300100H
Alnico Holding Pot Magnet with Thread type M3 Dimensions Ø=10 mm. H=10 mm. - Holding Force Max. = 0.8 Kg. Coating Zinc - Direction of Magnetization Axial [Along Height]

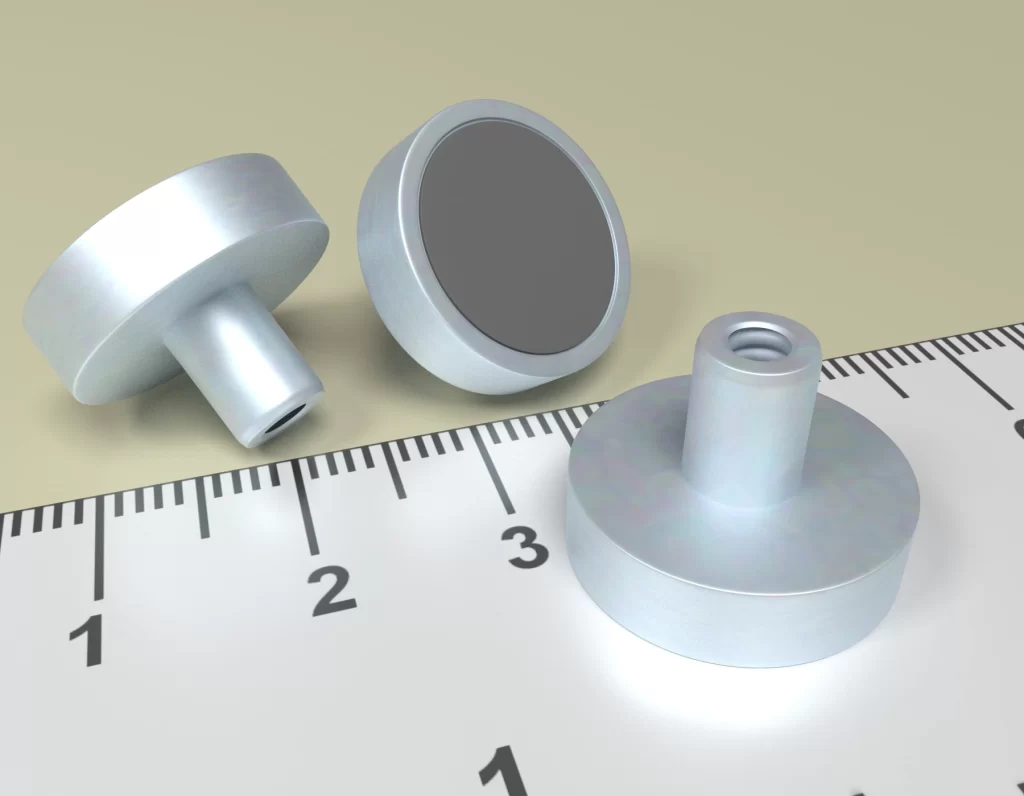

Holding POT HM 16x 4.5 Ferrite magnet with threaded-bush M3 Total Height 11.5
1.10kg
Code
040000T03M016000700045H
Ferrite Holding Pot Magnet with threaded-bush M3 - Dimensions Outer diam. 16, Hight of magnet 4.5 , Total Height 11.5 Holding Force Max. = 1.1 Kg. Axial Magnetization [Along Height]

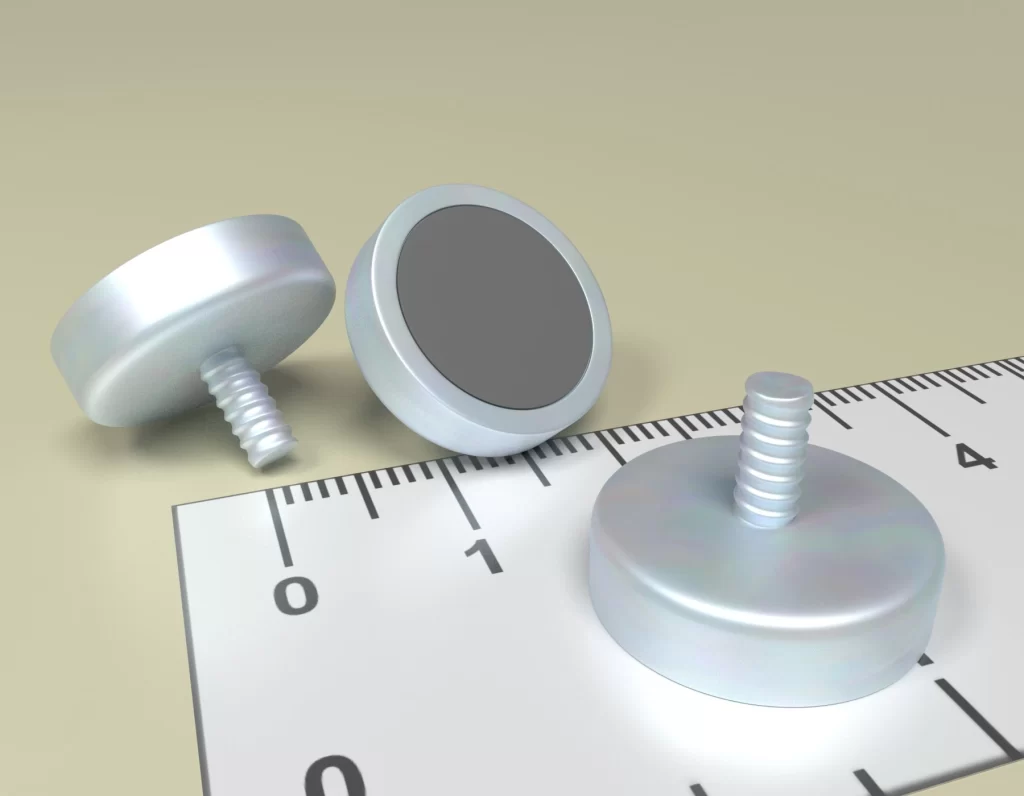

Holding Pot HM 16 x 4,5 x M3 out x 11,5 with threaded pin M3
1.30kg
Code
040000N03M016000700045H
Ferrite Holding Pot Magnet with threaded pin M3 and dimension Outer diameter 16, Magnet Height 4.5, Pin Height 7 Holding Force Max. = 1.3 Kg. Axial Magnetization [Along Height]
Out of stock
Holding POT HM 20 x 7 x 3,3 x 6 - Ferrite Magnet with cilidrical hole
1.60kg
Code
040000N03M020000330060H
Ferrite Holding Pot Magnet with cilidrical hole and dimension Outer diameter 20, Internal Hole 7/3.3, Height 6 Holding Force Max. = 1.6 Kg. Axial Magnetization [Along Height]

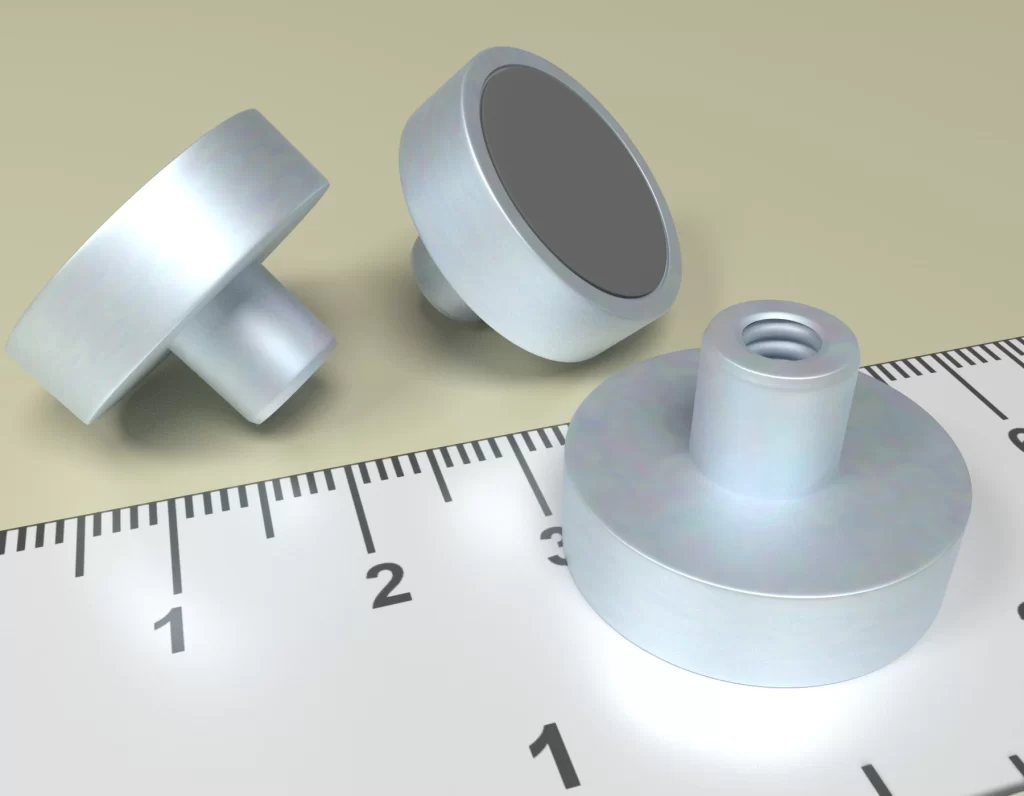

Holding POT HM 20x 6 Ferrite magnet with threaded-bush M4 Total Height 13
2.00kg
Code
040000T03M020000700060H
Ferrite Holding Pot Magnet with threaded-bush M4 - Dimensions Outer diam. 20, Hight of magnet 6 , Total Height 13 Holding Force Max. = 2 Kg. Axial Magnetization [Along Height]

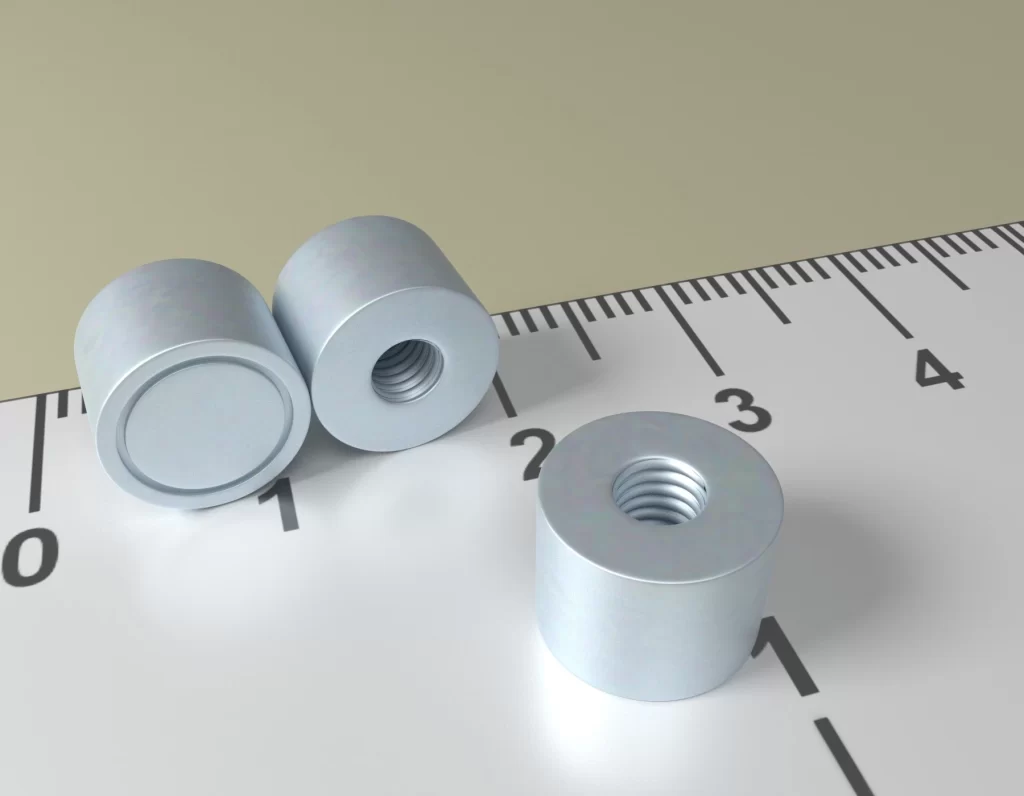

Neodym Holding Pot HM 8 x 6 / M3 with Thread type M3
2kg
Code
013800E03M008000300060H
Neodymium Holding Pot Magnet with Thread type M3 and dimension Outer diameter 8, Height 6 Holding Force Max. = 2 Kg. Zinc coated - Axial Magnetization [Along Height]
Holding Pot HM 20 x 6 x M3 out x 13 with threaded pin M4
2.10kg
Code
040000N03M020000700060H
Ferrite Holding Pot Magnet with threaded pin M4 and dimension Outer diameter 20, Magnet Height 6, Pin Height 7 Holding Force Max. = 2.1 Kg. Axial Magnetization [Along Height]

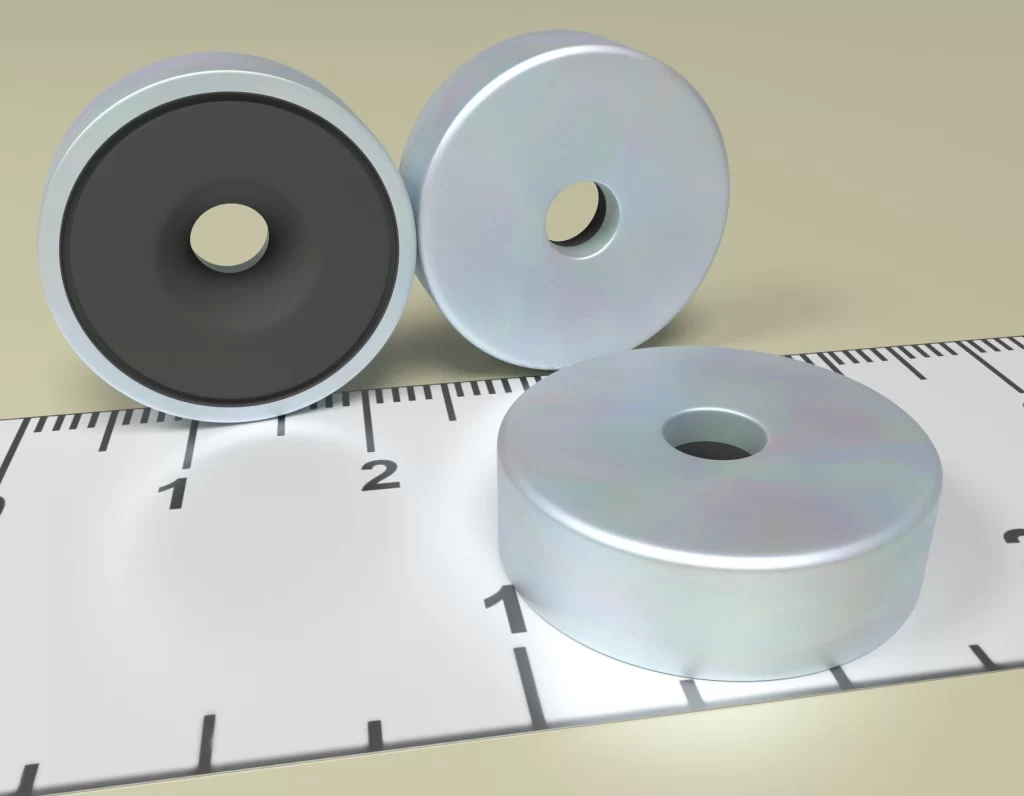

Holding POT HM 20 x 8,6/4,2 x 6 - Ferrite Magnet with countersunk hole
2.30kg
Code
040000A03M020000420060H
Ferrite Holding Pot Magnet with countersunk hole dimensionons Ø=20 mm. Ø Int.= 8.6 / 4.2 mm. H=6 mm. - Holding Force Max. = 2,3 Kg. Coating Zinc - Direction of Magnetization Axial [Along Height]
Permanent magnets are enclosed in a steel “shell”, thus concentrating the magnetic circuit and generating a higher attractive force than the magnet alone.
They are useful as a flat magnet or magnetic base, for mounting or holding elements in outdoor environments and for many other various possibilities of use. Holding magnets have a steel containment capsule. They are characterized by greater strength, resistance and durability. However, they accept a smaller airgap compared to magnets used without steel coating. They are widely used in many sectors, such as industry, construction, automotive, agriculture and advertising.”
